Circuit breaker ComPacT NSX100H, 70kA at 415VAC, TMD trip unit 32A, 3 poles 3d
Circuit-breakers, to protect lines carrying up to 630 amps

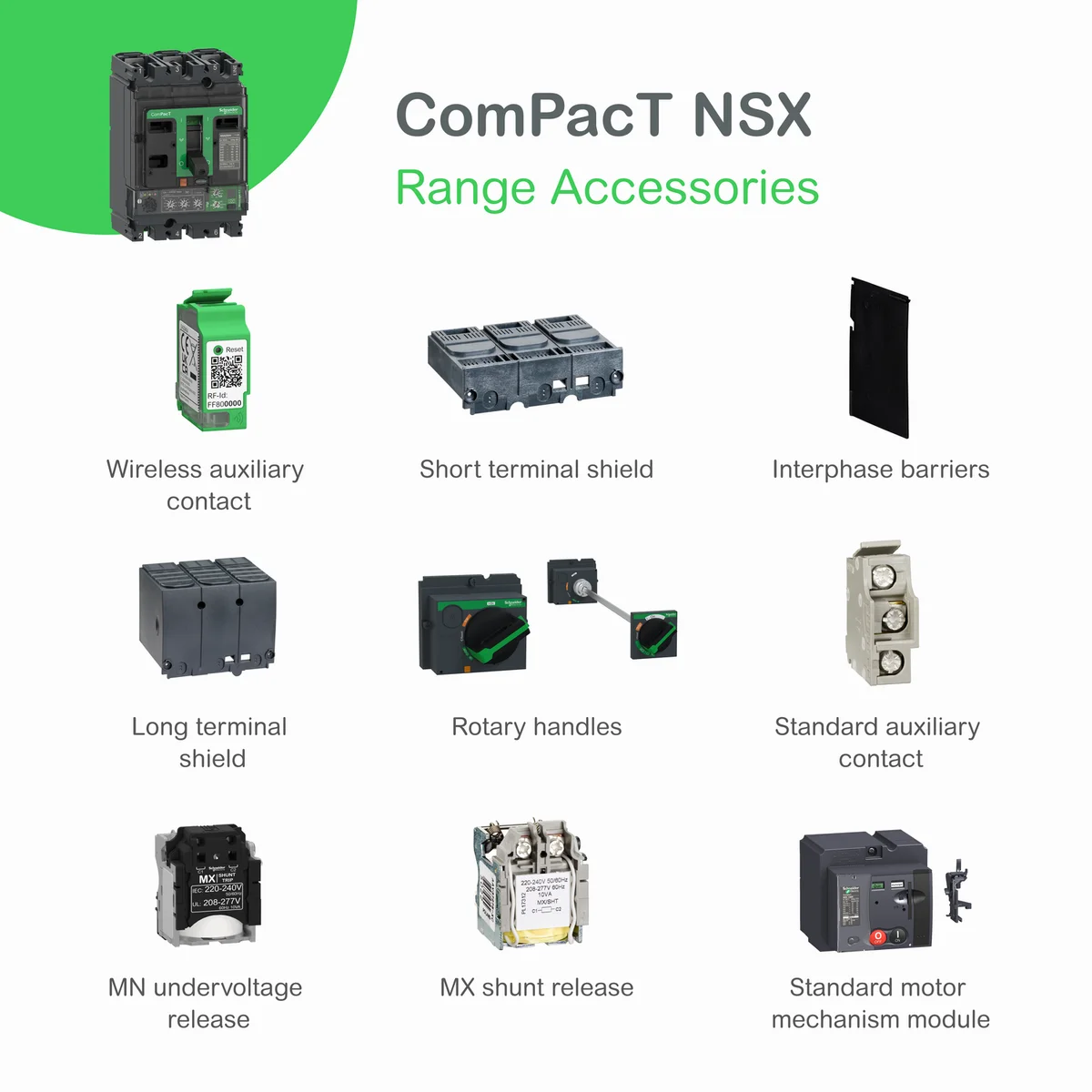

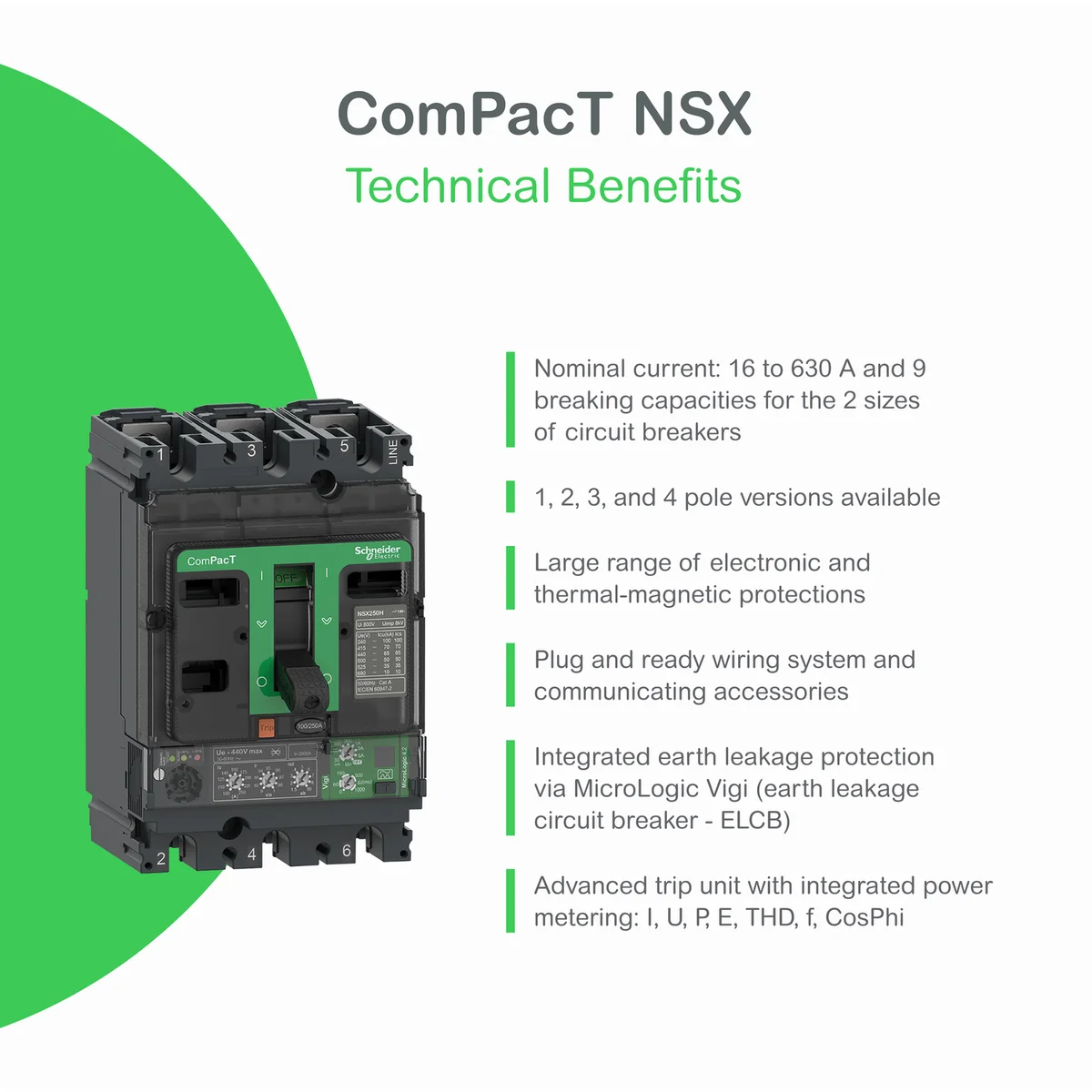

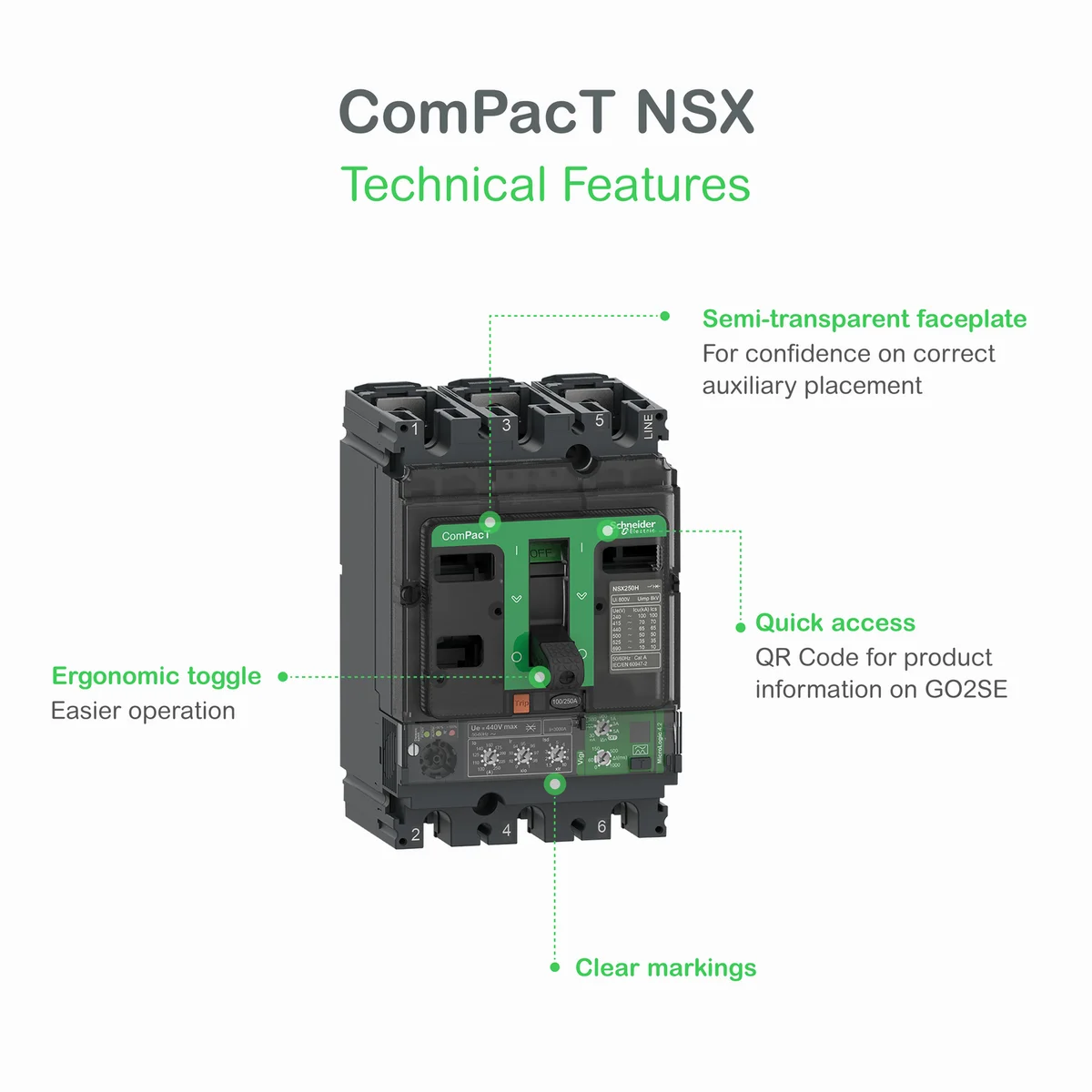

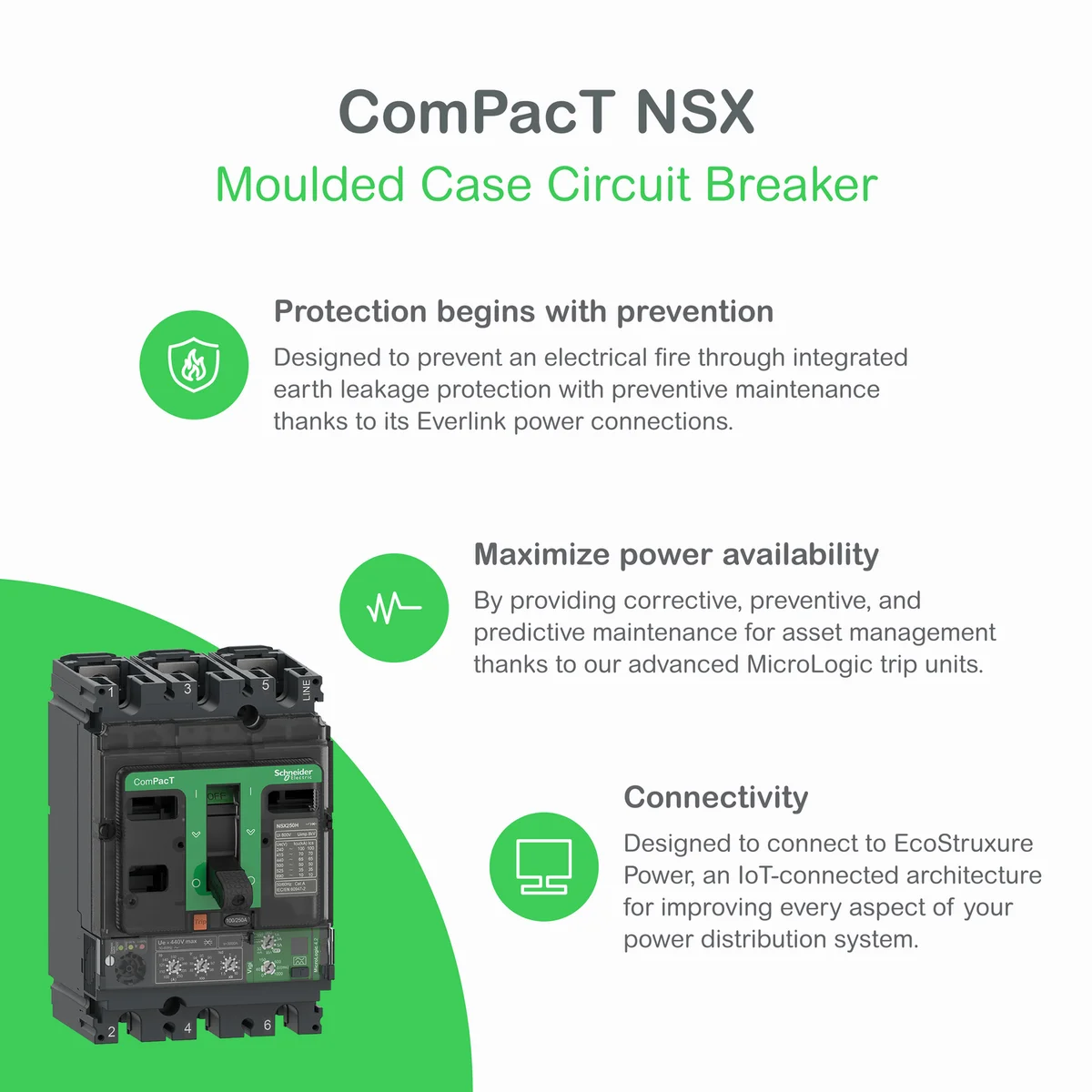

This ComPacT NSX100H is a complete 3P 3d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 70kA rms at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds a 32A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection. This 3 poles version (105mm x 161mm x 86mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX100H is part of Schneider Electric EcoStruxure Power architecture.
Detail Produk
| Kode Produk | C10H3TM032 |
| Brand | Schneider Electric |
| Aplikasi perangkat | Distribution |
| Berat produk | 2.05 kg |
| Deskripsi kutub | 3P |
| Deskripsi kutub terlindungi | 3D |
| Dudukan pemasangan | Backplate |
| Durabilitas listrik | 50000 cycles at 440 V In/2, 30000 cycles at 440 V In, 20000 cycles at 690 V In/2, 10000 cycles at 690 V In |
| Durabilitas mekanis | 50000 cycles |
| Frekuensi jaringan | 50/60 Hz |
| Fungsi proteksi unit trip | LI |
| IK degree proteksi | IK07 conforming to IEC 62262 |
| Jarak antar koneksi | 35 mm |
| Jumlah slot | 5 slot(s) |
| Kapasitas pemutusan | 100 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, 70 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 65 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2, 35 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2, 10 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2, 85 kA Icu at 240 V AC 50/60 Hz conforming to UL 60947-4-1, 65 kA Icu at 480 V AC 50/60 Hz conforming to UL 60947-4-1, 10 kA Icu at 600 V AC 50/60 Hz conforming to UL 60947-4-1 |
| Kategori tegangan lebih | III |

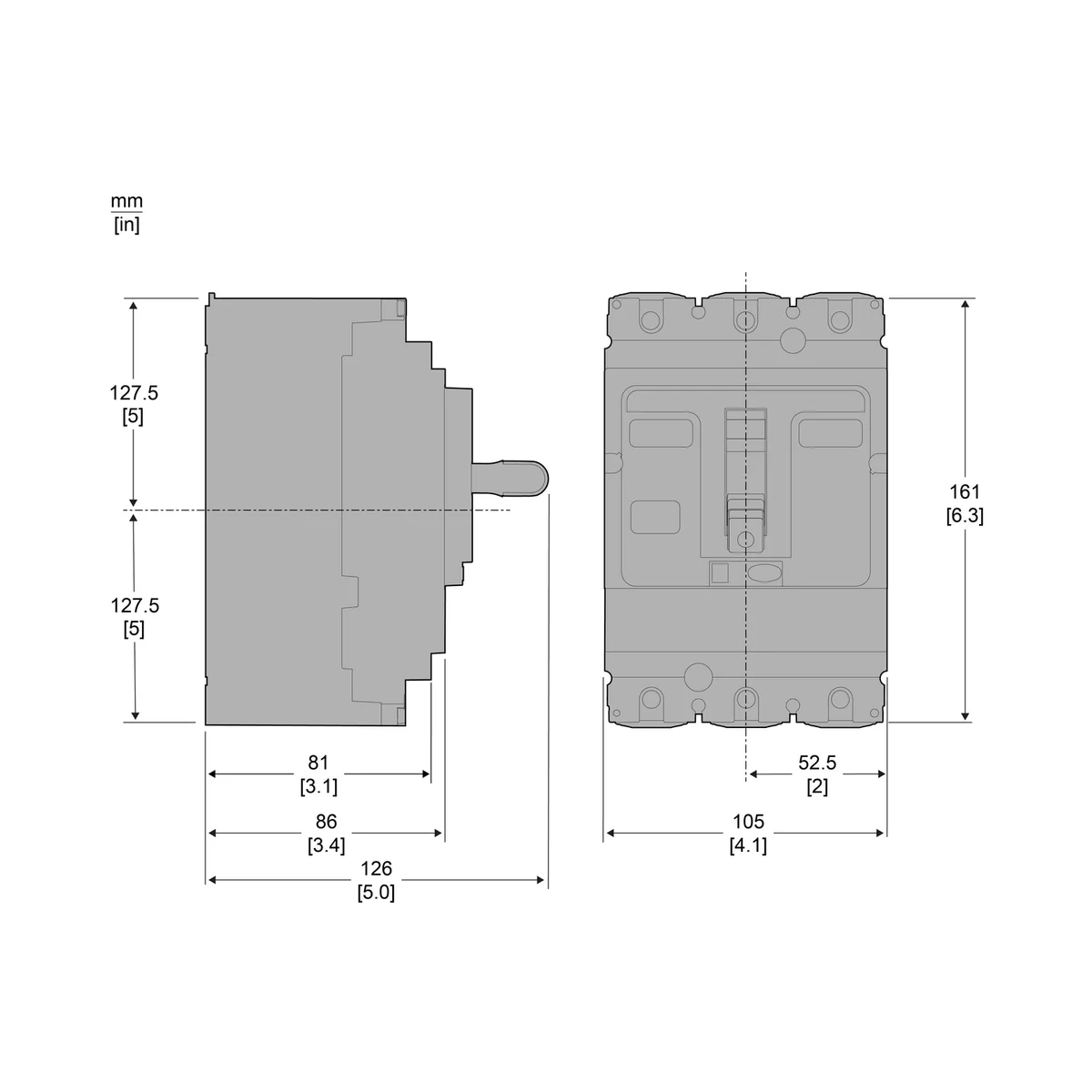

| Kedalaman (D) | 86 mm |
| Kelas proteksi kejut listrik | Class II on front face |
| Kelembapan relatif | 0…95 % |
| Kesesuaian untuk isolasi | Yes conforming to EN/IEC 60947-2 |
| Kode kapasitas pemutusan | H 70 kA 415 V AC |
| Koneksi atas | Front |
| Koneksi bawah | Front |
| Lebar (W) | 105 mm |
| Nama produk | ComPacT NSX |
| Nama singkat perangkat | NSX100H |
| Nama unit trip | TM-D |
| Operating altitude | 0...2000 m without derating, 2000 m...5000 m with derating |
| Posisi pemasangan | Horizontal and vertical, Flat on the back |
| Power dissipation per pole | 4.03 W |
| Proteksi kebocoran arde | Without |
| Rangkaian | ComPacT |
| Rating unit trip | 32 A at 40 °C |
| Sirkuit breaker pemasangan mode | Fixed |
| Standar | EN/IEC 60947-2 |
| Suhu udara lingkungan untuk operasi | -25…70 °C |
| Suhu udara lingkungan untuk penyimpanan | -50…85 °C |
| Teknologi unit trip | Thermal-magnetic |
| Tinggi (H) | 161 mm |
| Tingkat polusi | 3 conforming to IEC 60664-1 |
| Tingkat proteksi IP | IP40 conforming to IEC 60529 |
| Tipe jaringan | AC |
| Tipe kontrol | Toggle |
| Tipe pengaturan pick-up proteksi sesaat Ii | Fixed |
| Tipe pengaturan tunda proteksi waktu panjang tr | Fixed |
| Tipe produk atau komponen | Circuit breaker |
| Tipe proteksi | L : for overload protection (thermal), I : for short-circuit protection (magnetic) |
| Utilisation kategori | Category A |
| Waktu panjang pick-up pengaturan tipe ir (termal proteksi) | Adjustable |
| [Ics] Kapasitas pemutusan layanan terukur | 100 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, 70 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 65 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2, 35 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2, 10 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ii] Rentang pengaturan pick-up proteksi sesaat | 400 A |
| [In] Arus terukur | 32 A at 40 °C |
| [Ir] Waktu panjang proteksi pick-up pengaturan rentang | 0.7...1 x In |
| [Ue] Tegangan operasional terukur | 690 V AC 50/60 Hz |
| [Ui] Tegangan isolasi terukur | 800 V AC 50/60 Hz |
| [Uimp] Tegangan tahan impuls terukur | 8 kV |
| [tr] Rentang pengaturan tunda waktu panjang | 120…400 s at 1.5 x In, 15 s at 6 x Ir |
| Stok | 47 tersedia |
Stok Tersedia (47)
Rp 3.309.600
Rp 3.309.600
