circuit breaker EasyPact CVS100BS, 25 kA at 415 VAC, 32 A rating thermal magnetic TM-D trip unit, 3P 3d

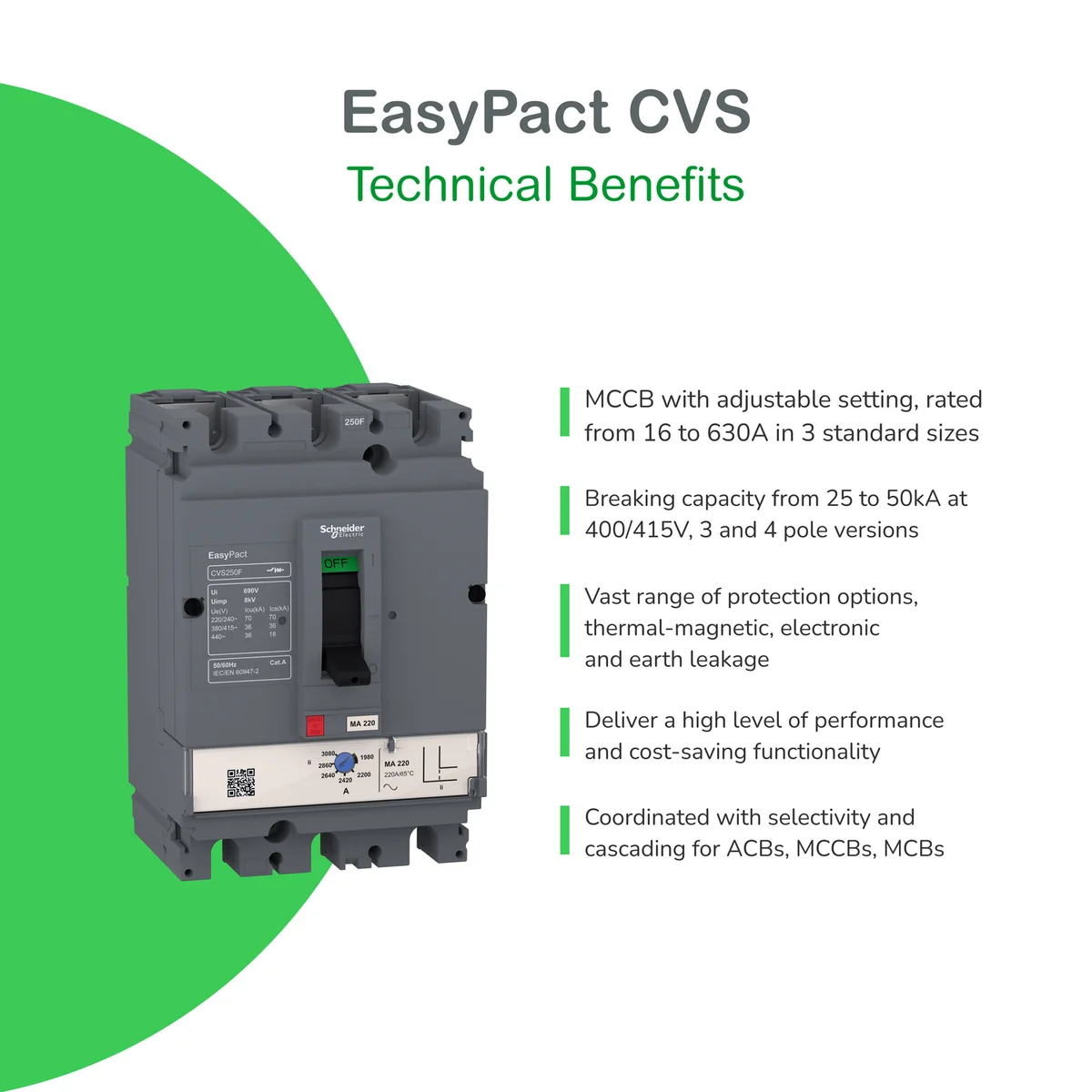

Molded-case circuit breakers from 16 to 630 A, with adjustable settings.

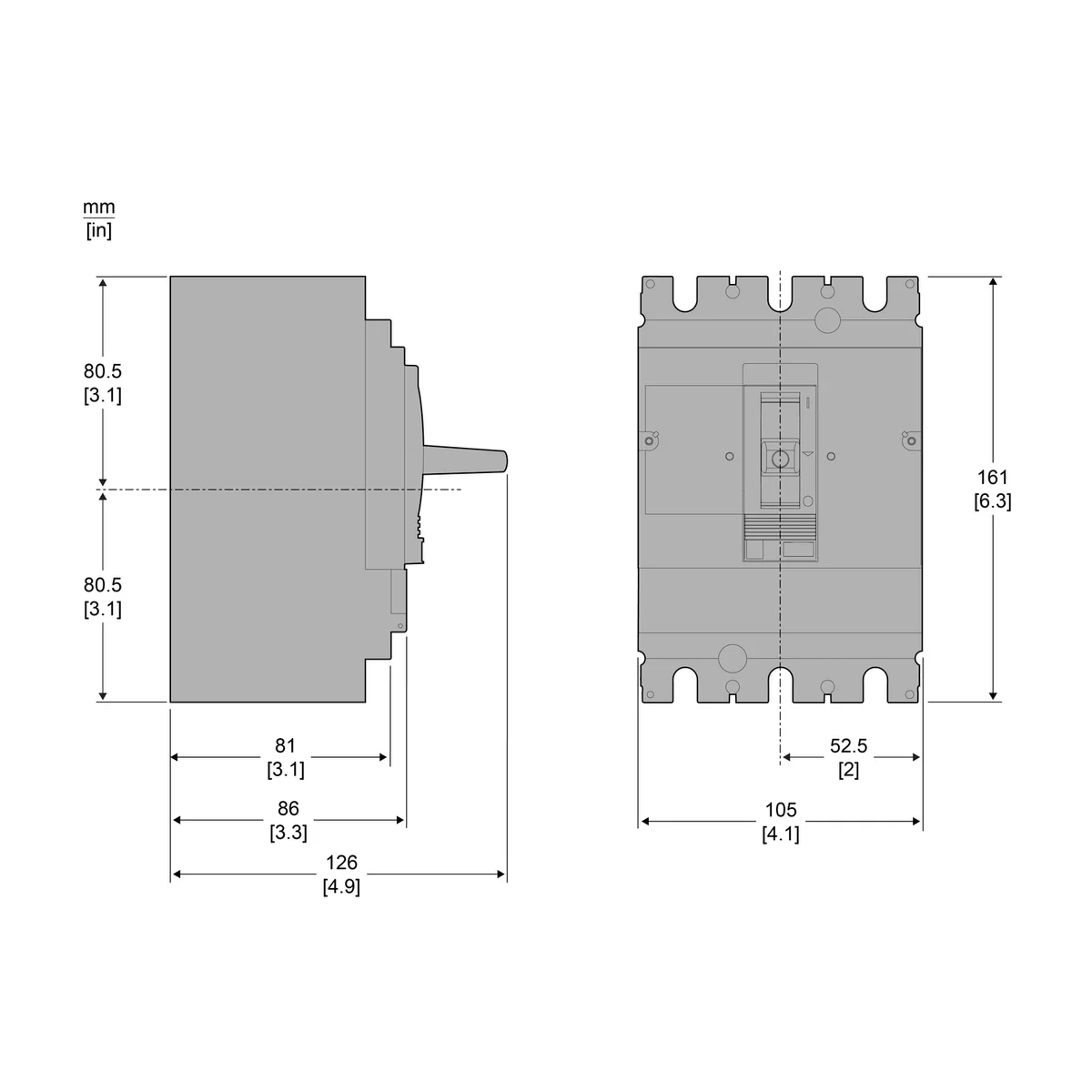

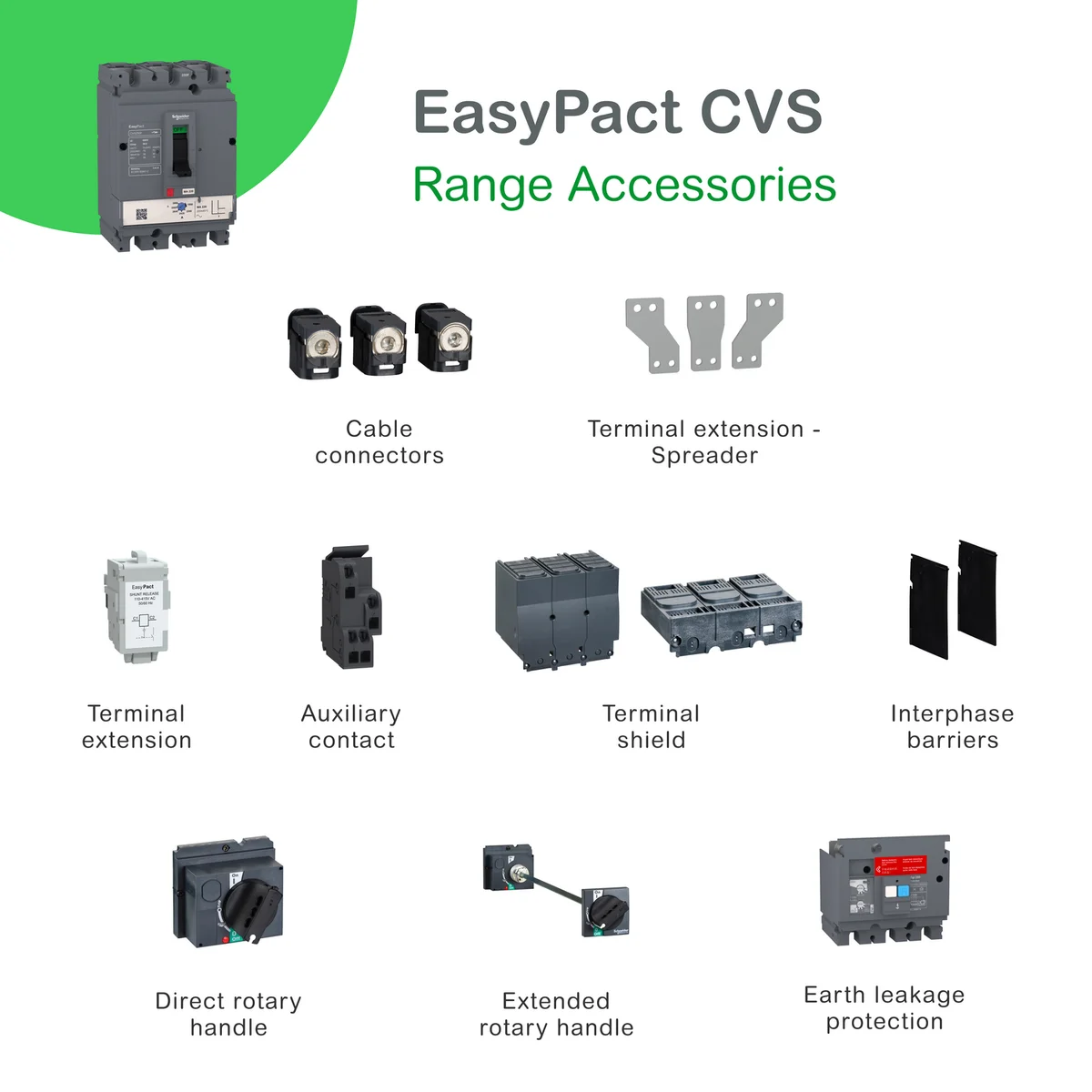

EasyPact CVS100BS is a 3 poles 3d fixed circuit breaker with a high level of performance and cost-saving functionality. It is an optimal choice for small and medium-sized buildings protection applications. The breaking capacity (Icu) is 25kA rms at 415VAC 50/60Hz. The operational voltage is 440VAC 50/60Hz. EasyPact CVS100BS current-limiting technology greatly reduces damage to installation caused by short-circuit current. This product embeds a 32A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection. This 3 poles version (75mm x 130mm x 60mm) comes with a variety of optional functions and accessories. EasyPact CVS100BS is compliant with international standards (IEC 60947, CCC, EAC).
Detail Produk
| Kode Produk | LV510933 |
| Brand | Schneider Electric |
| Aplikasi perangkat | Distribution |
| Berat produk | 0.78 kg |
| Deskripsi kutub | 3P |
| Deskripsi kutub terlindungi | 3D |
| Dudukan pemasangan | Backplate |
| Durabilitas listrik | 4000 cycles 415 V In conforming to IEC 60947-2 |
| Durabilitas mekanis | 13000 cycles |
| Frekuensi jaringan | 50/60 Hz |
| Indikator posisi kontak | Yes |
| Jarak antar koneksi | 35 mm |
| Kedalaman | 60 mm |
| Kelas proteksi kejut listrik | Class II |
| Kesesuaian untuk isolasi | Yes |
| Kode kapasitas pemutusan | BS |
| Kode kompatibilitas | CVS100 |
| Koneksi - terminal | Screw connection |
| Koneksi atas | Front |
| Koneksi bawah | Front |
| Lebar | 75 mm |
| Mode pemasangan | Fixed |
| Nama produk | EasyPact CVS |
| Nama singkat perangkat | CVS100BS |
| Nama unit trip | TM-D |
| Proteksi kebocoran arde (tambahan Vigi) | Without |
| Rangkaian | EasyPact |
| Rangkaian produk | EasyPact CVS100...160 |
| Rating unit trip | 32 A at 40 °C |
| Rentang pengaturan pick-up sesaat | 400 A |
| Rentang pengaturan pick-up waktu panjang | 0.7...1 x In |
| Rentang pengaturan proteksi termal | 22.4…32 A |
| Sertifikasi produk | CCC, CCS, GOST |
| Standar | IEC 60947-2 |
| Suhu udara lingkungan untuk operasi | -25…70 °C |
| Suhu udara lingkungan untuk penyimpanan | -50…85 °C |
| Teknologi unit trip | Thermal-magnetic |
| Tinggi | 130 mm |
| Tingkat polusi | 3 conforming to IEC 60664-1 |
| Tingkat proteksi IP | IP40 |
| Tipe jaringan | AC |
| Tipe kontrol | Toggle |
| Tipe pengaturan pick-up sesaat Ii | Fixed |
| Tipe pengaturan pick-up waktu panjang Ir | Adjustable |
| Tipe pengaturan tunda waktu panjang | Fixed |
| Tipe produk atau komponen | Circuit breaker |
| Tipe proteksi | Instantaneous short-circuit protection, Overload protection (long time) |
| Utilisation kategori | Category A |
| [Ics] Kapasitas pemutusan layanan terukur | 25 kA at 200/240 V AC 50/60 Hz conforming to IEC 60947-2, 17 kA at 380/400 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Icu] Kapasitas pemutusan | 25 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 25 kA Icu at 415 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA Icu at 200/240 V AC 50/60 Hz conforming to IEC 60947-2, 25 kA Icu at 380/400 V AC 50/60 Hz conforming to IEC 60947-2 |
| [In] Arus terukur | 32 A at 40 °C |
| [Uimp] Tegangan tahan impuls terukur | 8 kV conforming to EN/IEC 60947-2 |
