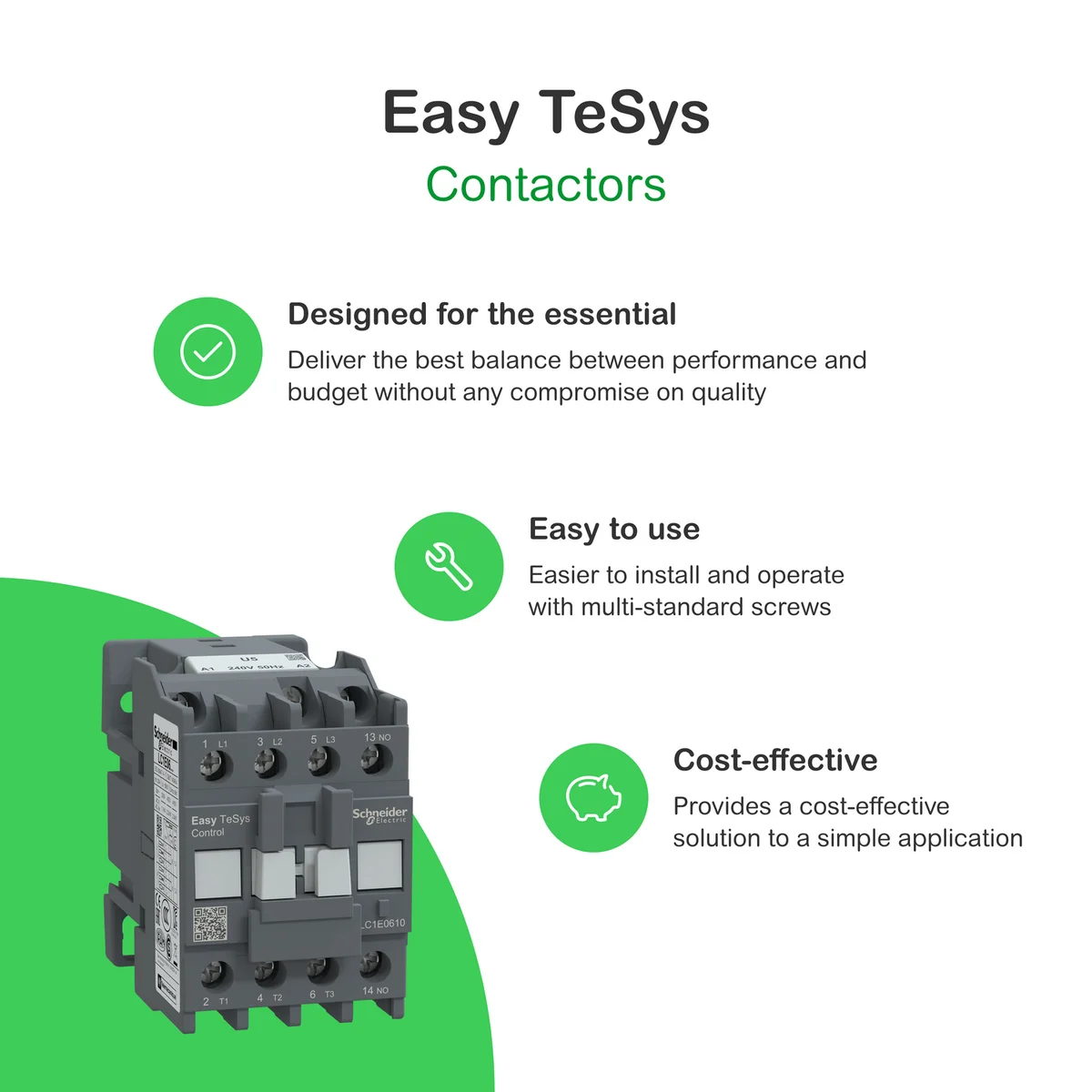

Easy TeSys contactor 3P(3 NO) - AC-3 - <= 440 V 18A - 220 V AC coil

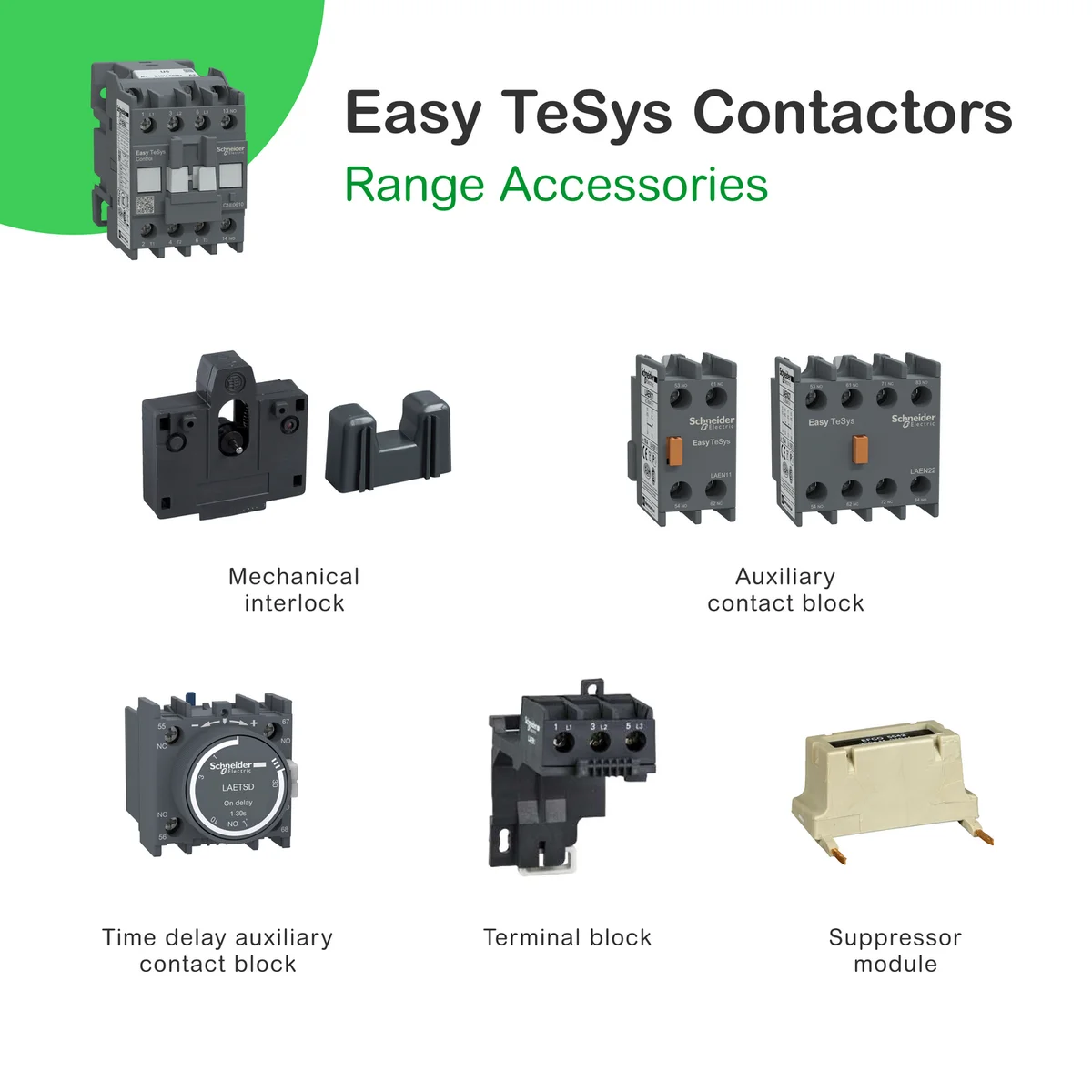

Simple and flexible solutions for motor starters from 6 to 630 A (3 to 335 k W / 400 V)

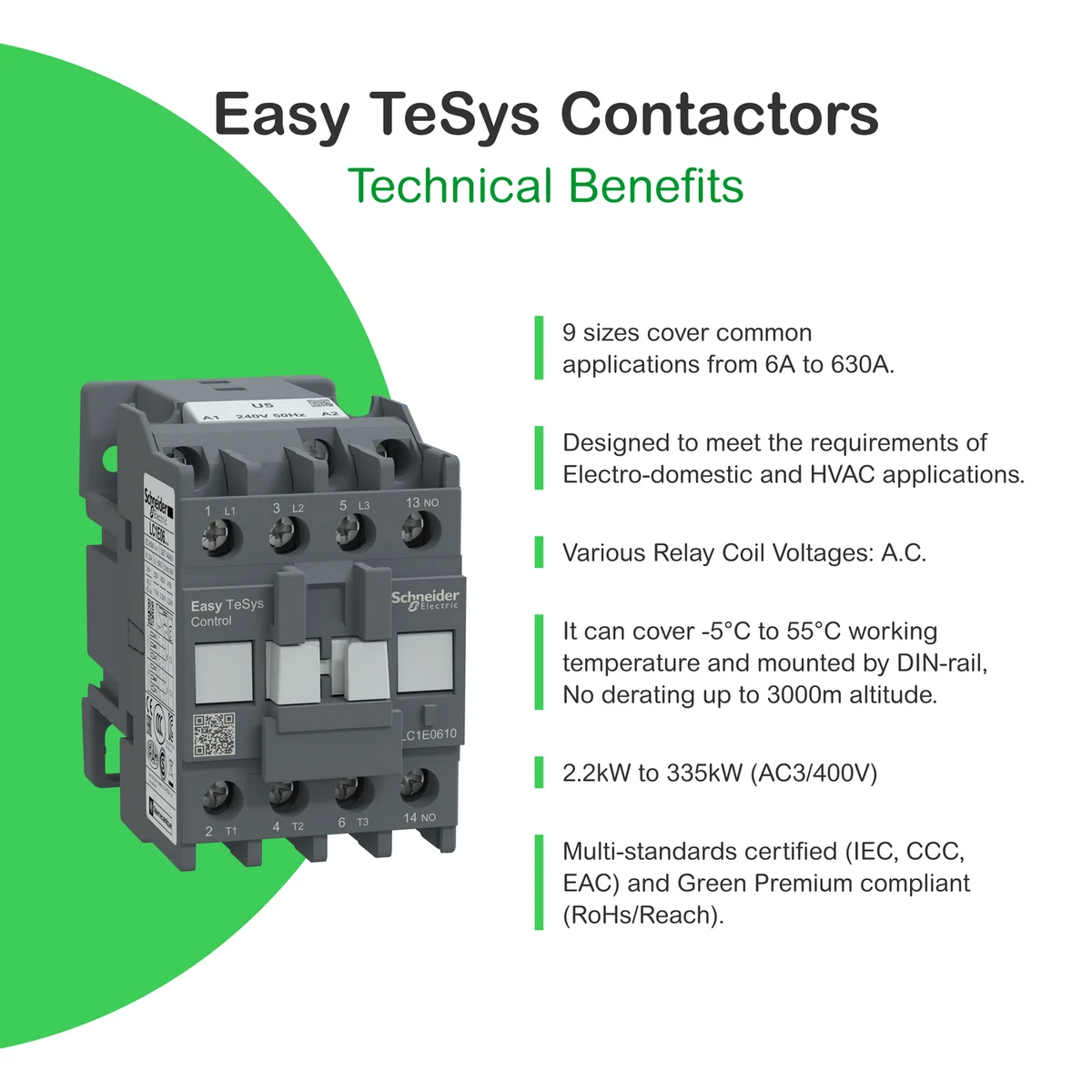

Easy TeSys Control contactor 3 poles for motor applications up to 18A 9kW@440V. It provides a 220V 50/60Hz AC coil, 1NC built-in auxiliary contacts, power and control connections by screw clamp terminals. 45mm width for standard operating rates up to 1800 cycles per hour. It procures standard reliability and durability with 1.2 Mcycles electrical durability AC-3 and 10 Mcycles mechanical durability. It can cover -5°C to 55°C working temperature and mounted by DIN-rail, No derating up to 3000m altitude. Multi-standards certified (IEC, CCC, EAC) and Green Premium compliant (RoHs/Reach).
Detail Produk
| Kode Produk | LC1E1801M7 |
| Brand | Schneider Electric |
| Aplikasi kontaktor | Motor control, Resistive load |
| Berat produk | 0.3 kg |
| Deskripsi kutub | 3P |
| Diizinkan ambient air temperature around the perangkat | -20…70 °C at Uc, -60…80 °C storage, -5…55 °C operation |
| Dudukan pemasangan | Plate, DIN rail |
| Durabilitas listrik | 300000 cycles AC-1, 1200000 cycles AC-3 |
| Durabilitas mekanis | 10000000 cycles |
| Fire resistansi | 850 °C conforming to IEC 60695-2-1 |
| Heat dissipation | 2…3 W for control circuit |
| Hold-in power konsumsi in VA | 8.3 VA 50 Hz cos phi 0.3 (at 20 °C), 8.5 VA 60 Hz cos phi 0.3 (at 20 °C) |
| Inrush power in VA | 95 VA 50 Hz cos phi 0.75 (at 20 °C), 95 VA 60 Hz cos phi 0.75 (at 20 °C) |
| Insulation resistansi | > 10 MOhm for auxiliary contact circuit |
| Irms terukur making capacity | 234 A at 440 V AC for power circuit conforming to IEC 60947-4-1 |
| Kategori tegangan lebih | III |

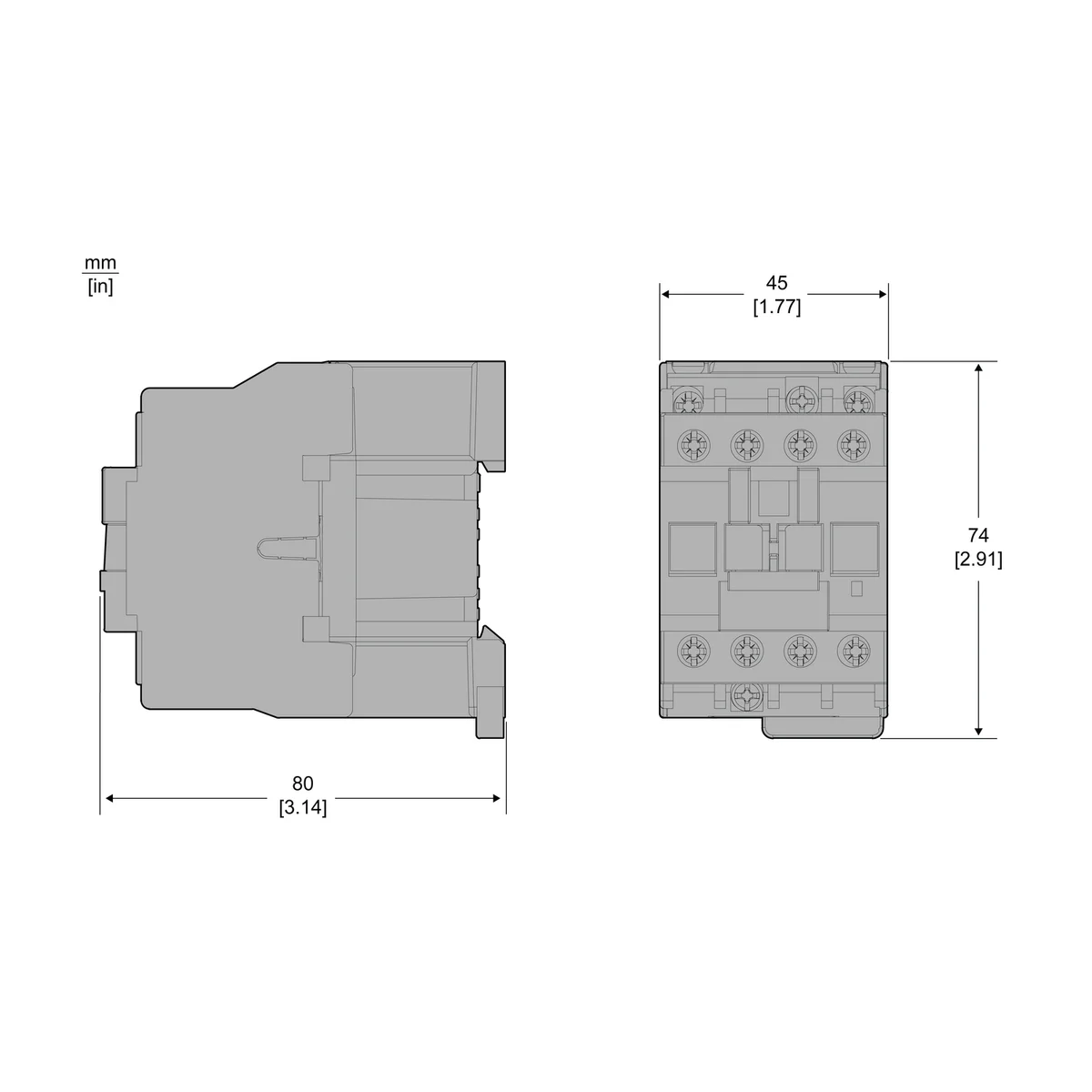

| Kedalaman | 80 mm |
| Komposisi kontak bantu | 1 NC |
| Koneksi - terminal | Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end, Power circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible without cable end, Power circuit: screw clamp terminals 1 1.5…6 mm² - cable stiffness: flexible with cable end, Power circuit: screw clamp terminals 2 1.5…6 mm² - cable stiffness: flexible with cable end, Power circuit: screw clamp terminals 1 1.5…6 mm² - cable stiffness: solid without cable end, Power circuit: screw clamp terminals 2 1.5…6 mm² - cable stiffness: solid without cable end, Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end, Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible without cable end, Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end, Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible with cable end, Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end, Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end |
| Kontrol sirkuit tegangan batas | 0.85...1.1 Uc (-5…55 °C):operational 50/60 Hz, 0.3...0.6 Uc (-5…55 °C):drop-out 50/60 Hz |
| Kontrol sirkuit tipe | AC at 50/60 Hz |
| Laju operasi maksimum | 1800 cyc/h 60 °C |
| Lebar | 45 mm |
| Mechanical robustness | Vibrations contactor open (1.5 Gn, 5...300 Hz), Vibrations contactor closed (3 Gn, 5...300 Hz), Shocks contactor open (7 Gn for 11 ms), Shocks contactor closed (10 Gn for 11 ms) |
| Minimum switching arus | 5 mA for auxiliary contact circuit |
| Motor power kw | 4 kW at 220/230 V AC 50/60 Hz, 7.5 kW at 380/400 V AC, 9 kW at 415/440 V AC, 9 kW at 500 V AC, 9 kW at 660/690 V AC, 10 kW at 660...690 V |
| Nama singkat perangkat | LC1E |
| Non-overlap time | 1.5 ms on energisation guaranteed between NC and NO contact, 1.5 ms on de-energisation guaranteed between NC and NO contact |
| Operating altitude | 3000 m without derating |
| Pole contact composition | 3 NO |
| Power dissipation per pole | 0.81 W AC-3, 2.6 W AC-1 |
| Protective treatment | TH (pollution degree 3) conforming to IEC 60068-2-30 test Db |
| Rangkaian | Easy TeSys |
| Rangkaian produk | Easy TeSys Control |
| Rata-rata impedance | 2.5 mOhm - Ith 32 A 50 Hz for power circuit |
| Rating sekring terkait | 35 A gG at <= 690 V coordination type 1 for power circuit, 10 A gG at <= 690 V for auxiliary contact circuit conforming to IEC 60947-5-1 |
| Sertifikasi produk | CB Scheme, CCC, CE, EAC |
| Standar | EN/IEC 60947-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, GB/T 14048.1, GB/T 14048.4, GB/T 14048.5, EN/IEC 60335-1:Clause 30.2, EN/IEC 60335-2-40:Annex JJ |
| Tegangan switching minimum | 17 V for auxiliary contact circuit |
| Terukur kapasitas pemutusan | 153 A at 440 V for power circuit conforming to IEC 60947 |
| Tinggi | 74 mm |
| Tingkat polusi | 3 |
| Tingkat proteksi IP | IP2X conforming to IEC 60529 |
| Tipe produk atau komponen | Contactor |
| Torsi pengencangan | Power circuit: 1.2 N.m, Control circuit: 1.2 N.m |
| Utilisation kategori | AC-3, AC-3e, AC-1 |
| Waktu operasi | 12...22 ms on closing, 4...19 ms on opening |
| [Icw] Terukur waktu singkat withstand arus | 145 A 40 °C - 10 s for power circuit, 84 A 40 °C - 60 s for power circuit, 40 A 40 °C - 600 s for power circuit |
| [Ie] Arus operasional terukur | 18 A (at <55 °C) at <= 440 V AC AC-3 for power circuit, 18 A (at <55 °C) at <= 440 V AC AC-3e for power circuit, 32 A (at <55 °C) at <= 440 V AC AC-1 for power circuit |
| [Ith] Arus termal udara bebas konvensional | 32 A (at 55 °C) for power circuit |
| [Uc] Tegangan sirkuit kontrol | 220 V AC 50/60 Hz |
| [Ue] Tegangan operasional terukur | Power circuit: <= 690 V AC 50/60 Hz |
| [Ui] Tegangan isolasi terukur | 690 V conforming to IEC 60947-4-1 |
| [Uimp] Tegangan tahan impuls terukur | 6 kV coil not connected to the power circuit conforming to IEC 60947 |
| Stok | 39 tersedia |
