Easypact CVS - CVS100N circuit breaker - 3P/3d
Molded-case circuit breakers from 16 to 630 A, with adjustable settings.
This device is a rated current 50A circuit breaker from EasyPact CVS250N. The rated breaking capacity(Ics) is 50kA at 415VAC,and complete range with Ics=100%Icu. The version of breaker is 3poles frame with detection on 3poles, also accompanied TM-D trip unit for thermal-magnetic protection. It is conformed to standard IEC60947-2 for circuit breakers part. This device is certified for operation in pollution degree III environment as defined IEC60947-1& IEC60664-1, and respected for RoHs requirement as european environment directive EC/2002/95. It can be mounted by blackplate or Din rail,also through the door of class II switchboard without downgrading switchboard insulation. The front of toggle offers IP40 protection, but when it is equiped extended rotary handle inside the switchboard, additional IP54 protection degree for extended rotary handle. This series have slots for electrical auxiliaries(MN/MX/OF/SD),depending on the type of trip unit if rotary handle installed. The fixed dimension is 140mm width.255mm height,110mm depth,
Detail Produk
| Kode Produk | LV510474 |
| Brand | Schneider Electric |
| Aplikasi perangkat | Distribution |
| Berat bersih | 1.5 kg |
| Deskripsi kutub | 3P |
| Deskripsi kutub terlindungi | 3D |
| Dudukan pemasangan | Backplate |
| Durabilitas listrik | 12000 cycles 415 V In conforming to IEC 60947-2 |
| Durabilitas mekanis | 30000 cycles |
| Frekuensi jaringan | 50/60 Hz |
| Indikator posisi kontak | Yes |
| Jarak antar koneksi | 35 mm |

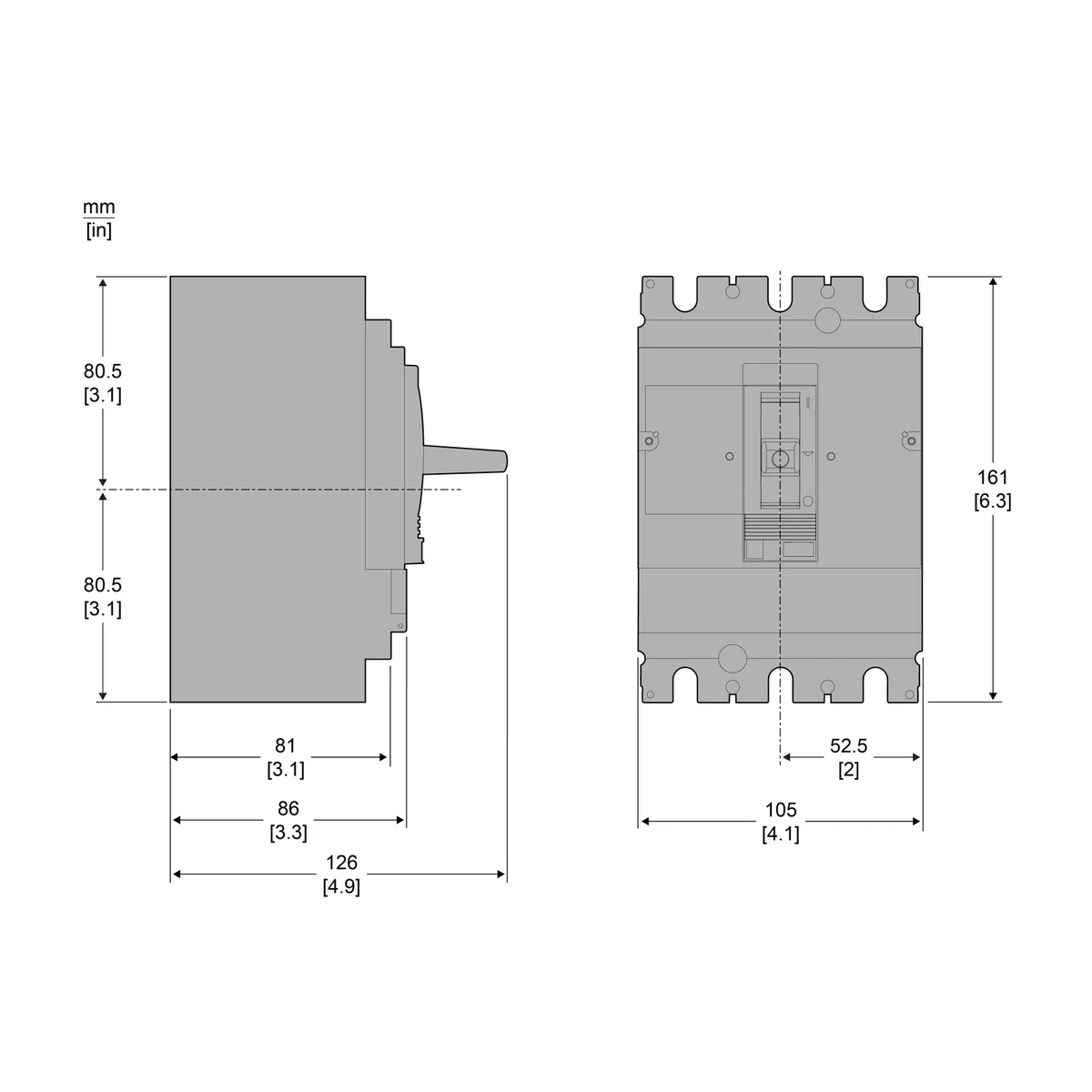

| Kedalaman | 86 mm |
| Kelas proteksi kejut listrik | Class II |
| Kode kapasitas pemutusan | N |
| Kode kompatibilitas | CVS100 |
| Koneksi - terminal | Screw connection |
| Koneksi atas | Front |
| Koneksi bawah | Front |
| Lebar | 105 mm |
| Mode pemasangan | Fixed |
| Nama produk | EasyPact CVS |
| Nama singkat perangkat | CVS100N |
| Nama unit trip | TM-D |
| Proteksi kebocoran arde (tambahan Vigi) | Without |
| Rangkaian | EasyPact |
| Rangkaian produk | EasyPact CVS100...250 |
| Rating unit trip | 50 A at 40 °C |
| Rentang pengaturan pick-up sesaat | 500 A |
| Rentang pengaturan pick-up waktu panjang | 0.7...1 x In |
| Rentang pengaturan proteksi termal | 0…50 A |
| Sertifikasi produk | IEC, GOST |
| Standar | EN 60947-2, IEC 60947-2 |
| Suhu udara lingkungan untuk operasi | -25…70 °C |
| Suhu udara lingkungan untuk penyimpanan | -50…85 °C |
| Teknologi unit trip | Thermal-magnetic |
| Tinggi | 161 mm |
| Tingkat proteksi IP | IP40 |
| Tipe jaringan | AC |
| Tipe kontrol | Toggle |
| Tipe pengaturan pick-up sesaat Ii | Fixed |
| Tipe pengaturan pick-up waktu panjang Ir | Adjustable |
| Tipe pengaturan tunda waktu panjang | Fixed |
| Tipe pengaturan tunda waktu singkat | Fixed |
| Tipe produk atau komponen | Circuit breaker |
| Tipe proteksi | Short-circuit protection (magnetic), Overload protection (thermal) |
| Utilisation kategori | Category A |
| [Ics] Kapasitas pemutusan layanan terukur | 30 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 80 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Icu] Kapasitas pemutusan | 50 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 40 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 80 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 |
| [In] Arus terukur | 50 A at 40 °C |
| [Uimp] Tegangan tahan impuls terukur | 8 kV conforming to EN/IEC 60947-2 |
| Stok | 51 tersedia |
