Easypact CVS - CVS160F TM160D circuit breaker - 4P/3d

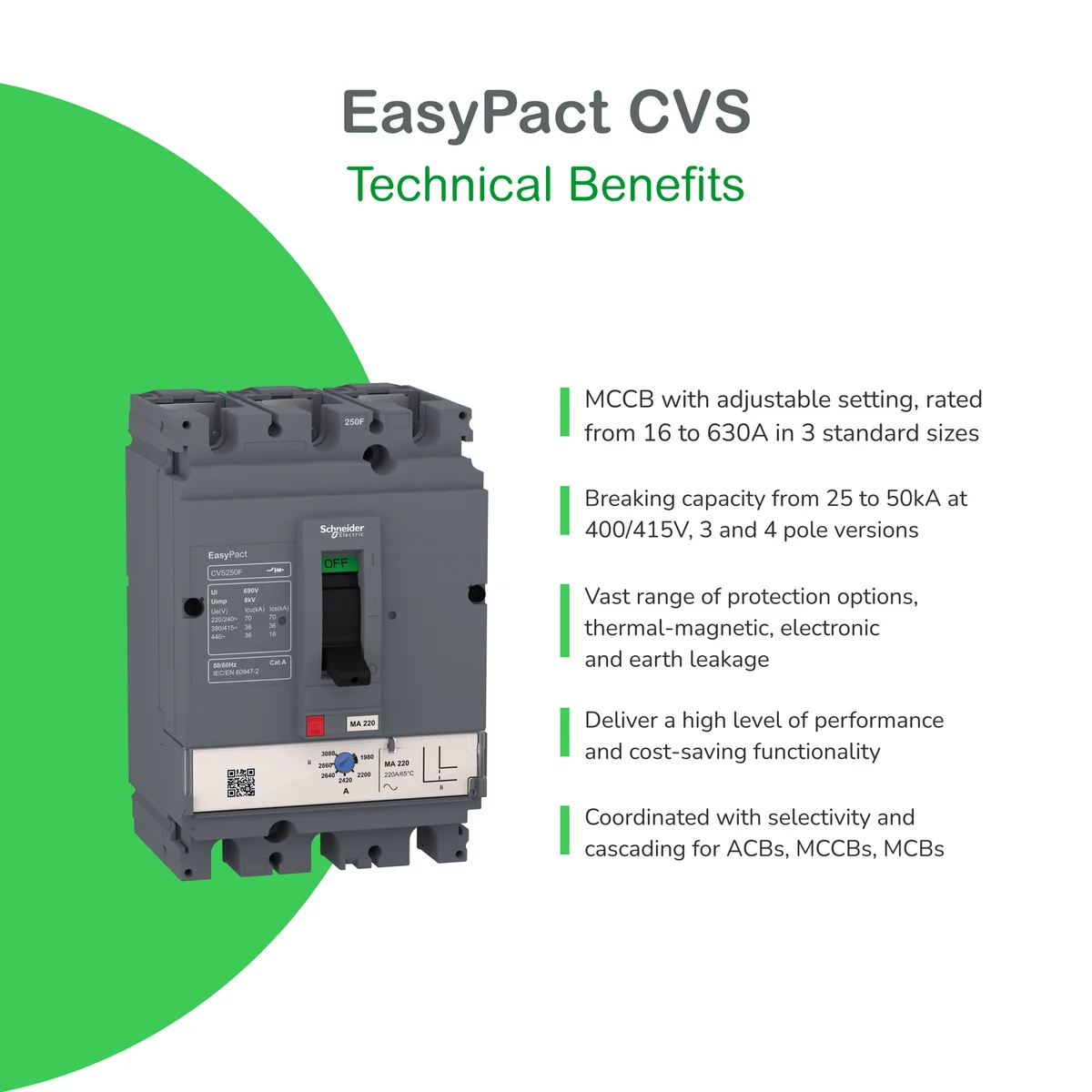

Molded-case circuit breakers from 16 to 630 A, with adjustable settings.

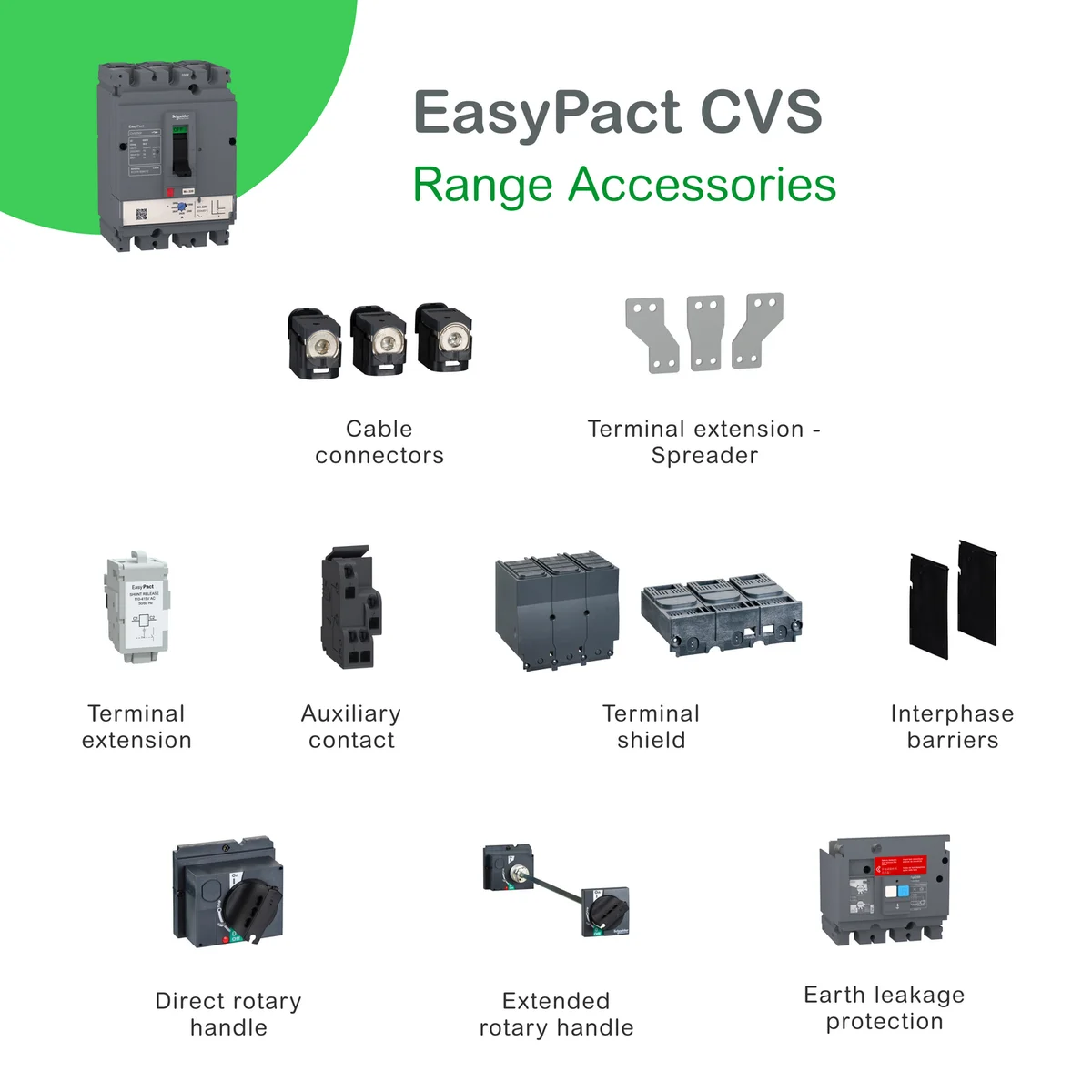

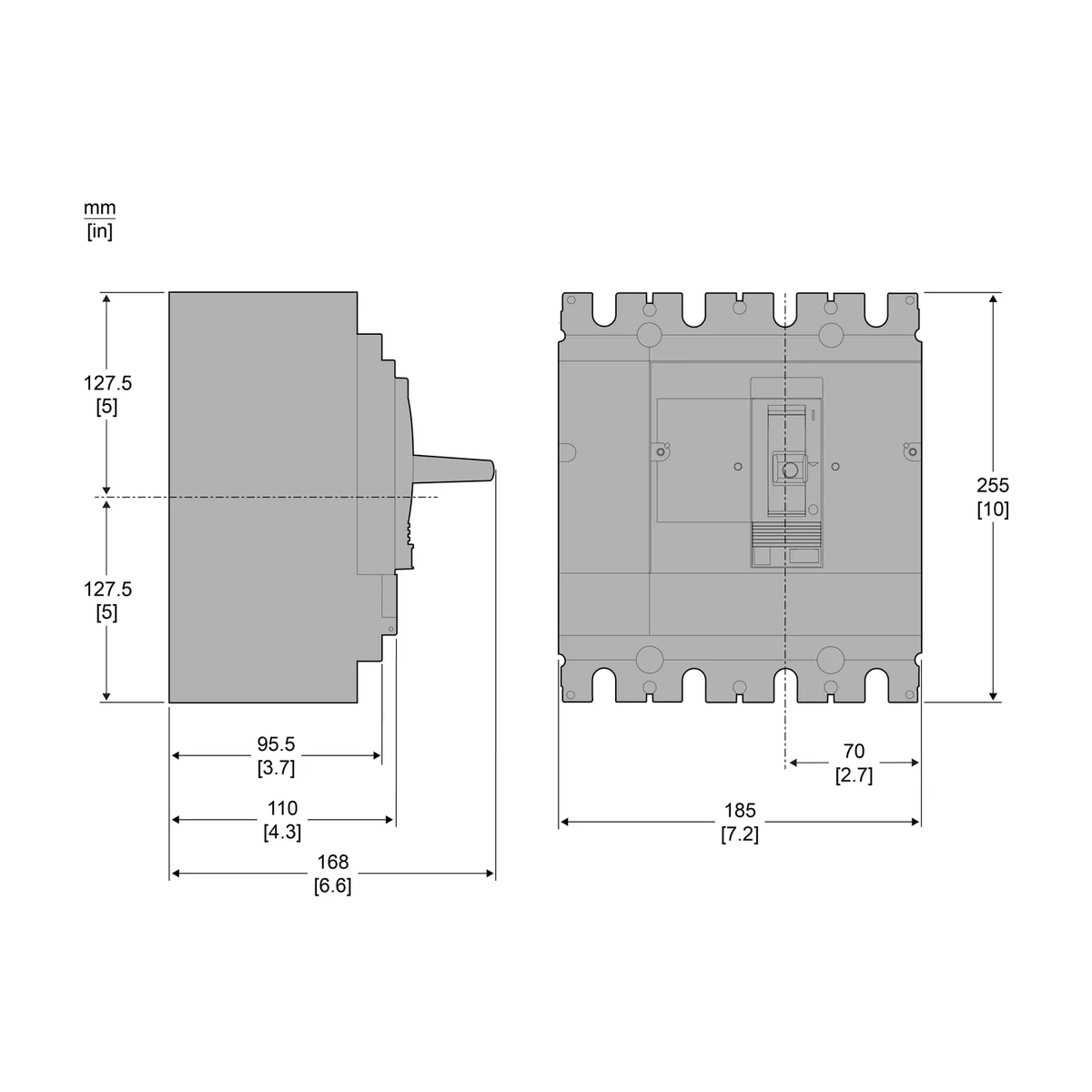

EasyPact CVS160F is a 4 poles 3d fixed circuit breaker with a high level of performance and cost-saving functionality. It is an optimal choice for small and medium-sized buildings protection applications. The breaking capacity (Icu) is 36kA rms at 415VAC 50/60Hz. The operational voltage is 440VAC 50/60Hz. This product embeds a 160A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection. This 4 poles version (140mm x 161mm x 86mm) comes with a variety of optional functions and accessories. EasyPact CVS160F is compliant with international standards (IEC 60947, CCC, EAC). It can be installed in class II insulation switchboards as it is a class II front face device (IEC 60664-1).
Detail Produk
| Kode Produk | LV516343 |
| Brand | Schneider Electric |
| Aplikasi perangkat | Distribution |
| Berat produk | 1.9 kg |
| Deskripsi kutub | 4P |
| Deskripsi kutub terlindungi | 3D |
| Dudukan pemasangan | Backplate |
| Durabilitas listrik | 12000 cycles 415 V In conforming to IEC 60947-2 |
| Durabilitas mekanis | 25000 cycles |
| Frekuensi jaringan | 50/60 Hz |
| Indikator posisi kontak | Yes |
| Jarak antar koneksi | 35 mm |
| Kedalaman | 86 mm |
| Kelas proteksi kejut listrik | Class II |
| Kode kapasitas pemutusan | F |
| Kode kompatibilitas | CVS160 |
| Koneksi - terminal | Screw connection |
| Koneksi atas | Front |
| Koneksi bawah | Front |
| Lebar | 140 mm |
| Mode pemasangan | Fixed |
| Nama produk | EasyPact CVS |
| Nama singkat perangkat | CVS160F |
| Nama unit trip | TM-D |
| Pengaturan proteksi netral | No protection (3D) |
| Posisi netral | Left |
| Proteksi kebocoran arde (tambahan Vigi) | Without |
| Rangkaian | EasyPact |
| Rangkaian produk | EasyPact CVS100...250 |
| Rating unit trip | 160 A at 40 °C |
| Rentang pengaturan pick-up sesaat | 1250 A |
| Rentang pengaturan pick-up waktu panjang | 0.7...1 x In |
| Rentang pengaturan proteksi termal | 112…160 A |
| Sertifikasi produk | GOST, IEC |
| Standar | IEC 60947-2, EN 60947-2 |
| Suhu udara lingkungan untuk operasi | -25…70 °C |
| Suhu udara lingkungan untuk penyimpanan | -50…85 °C |
| Teknologi unit trip | Thermal-magnetic |
| Tinggi | 161 mm |
| Tingkat polusi | 3 conforming to IEC 60664-1 |
| Tingkat proteksi IP | IP40 |
| Tipe jaringan | AC |
| Tipe kontrol | Toggle |
| Tipe pengaturan pick-up sesaat Ii | Fixed |
| Tipe pengaturan pick-up waktu panjang Ir | Adjustable |
| Tipe pengaturan tunda waktu panjang | Fixed |
| Tipe produk atau komponen | Circuit breaker |
| Tipe proteksi | Short-circuit protection (magnetic), Overload protection (thermal) |
| Utilisation kategori | Category A |
| [Ics] Kapasitas pemutusan layanan terukur | 18 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2, 36 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 70 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Icu] Kapasitas pemutusan | 36 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 36 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 70 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 |
| [In] Arus terukur | 160 A at 40 °C |
| [Uimp] Tegangan tahan impuls terukur | 8 kV conforming to EN/IEC 60947-2 |
| Stok | 27 tersedia |
