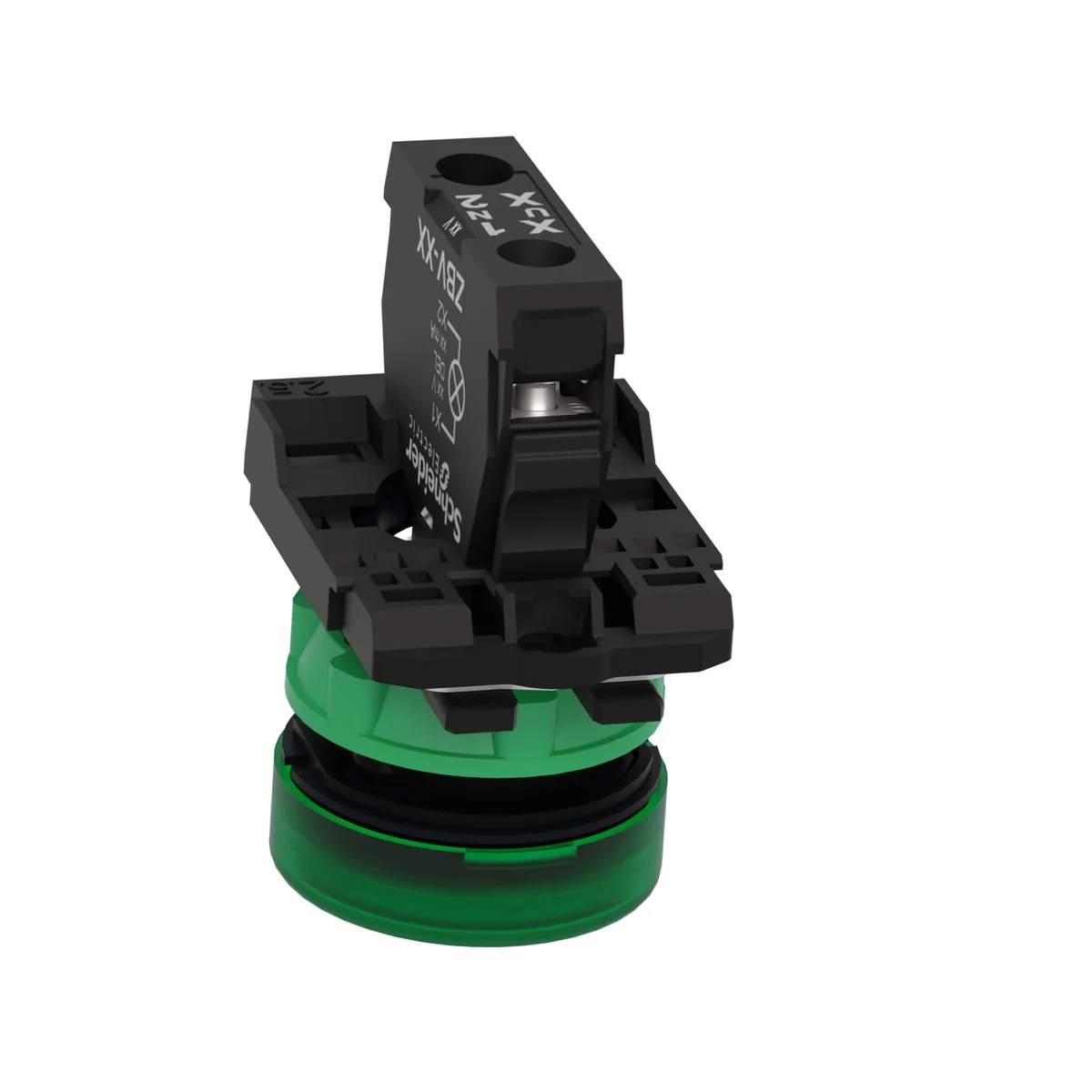

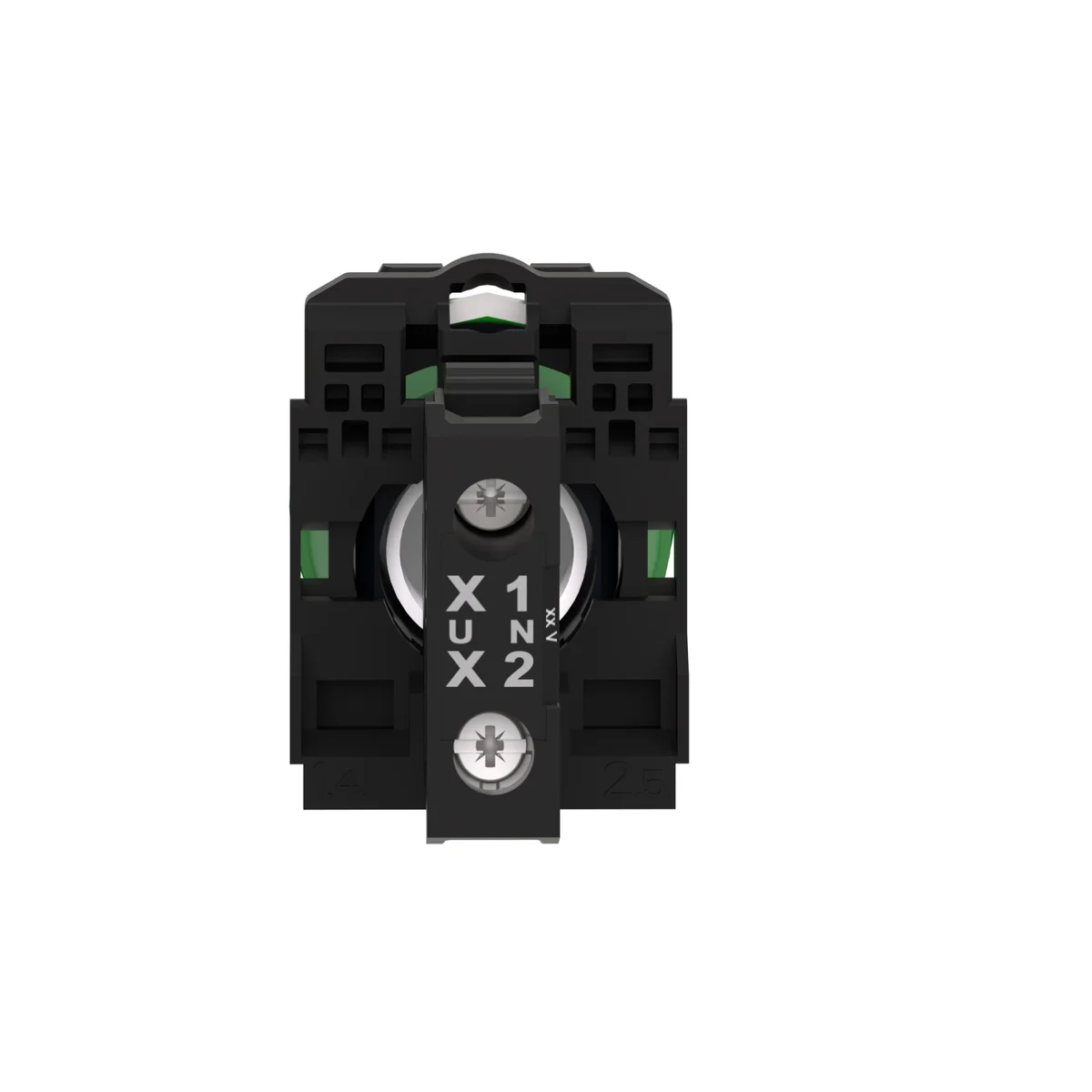

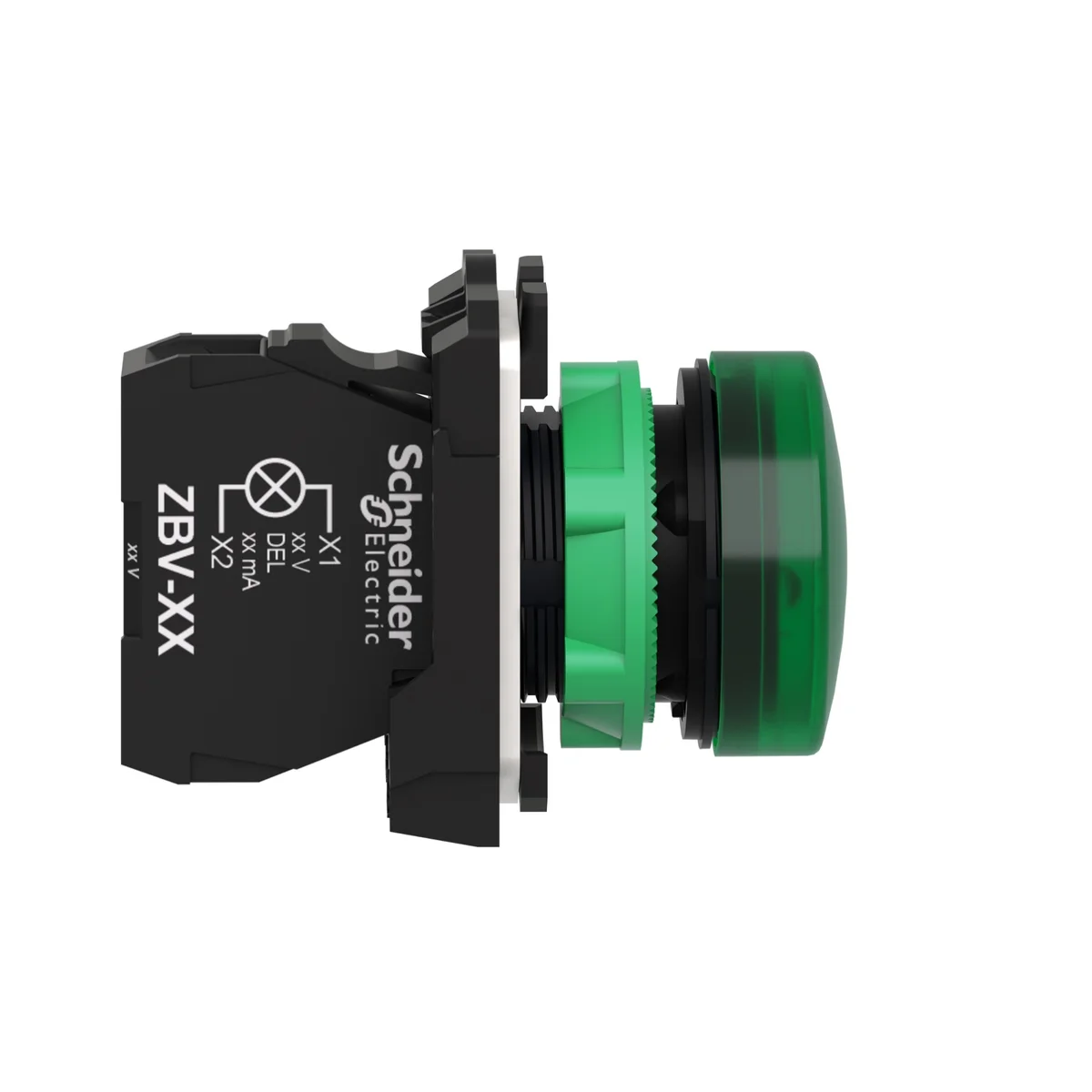

green complete pilot light Ø22 plain lens with integral LED 24V
Ø 22 mm plastic push buttons, switches, pilot lights
This Harmony XB5, plain lens modular green pilot light is supplied with 24V AC/DC, uses an integral LED and screw clamp terminals. This pilot light, designed to last without maintenance for a bright indication of process and machine operations, is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Detail Produk

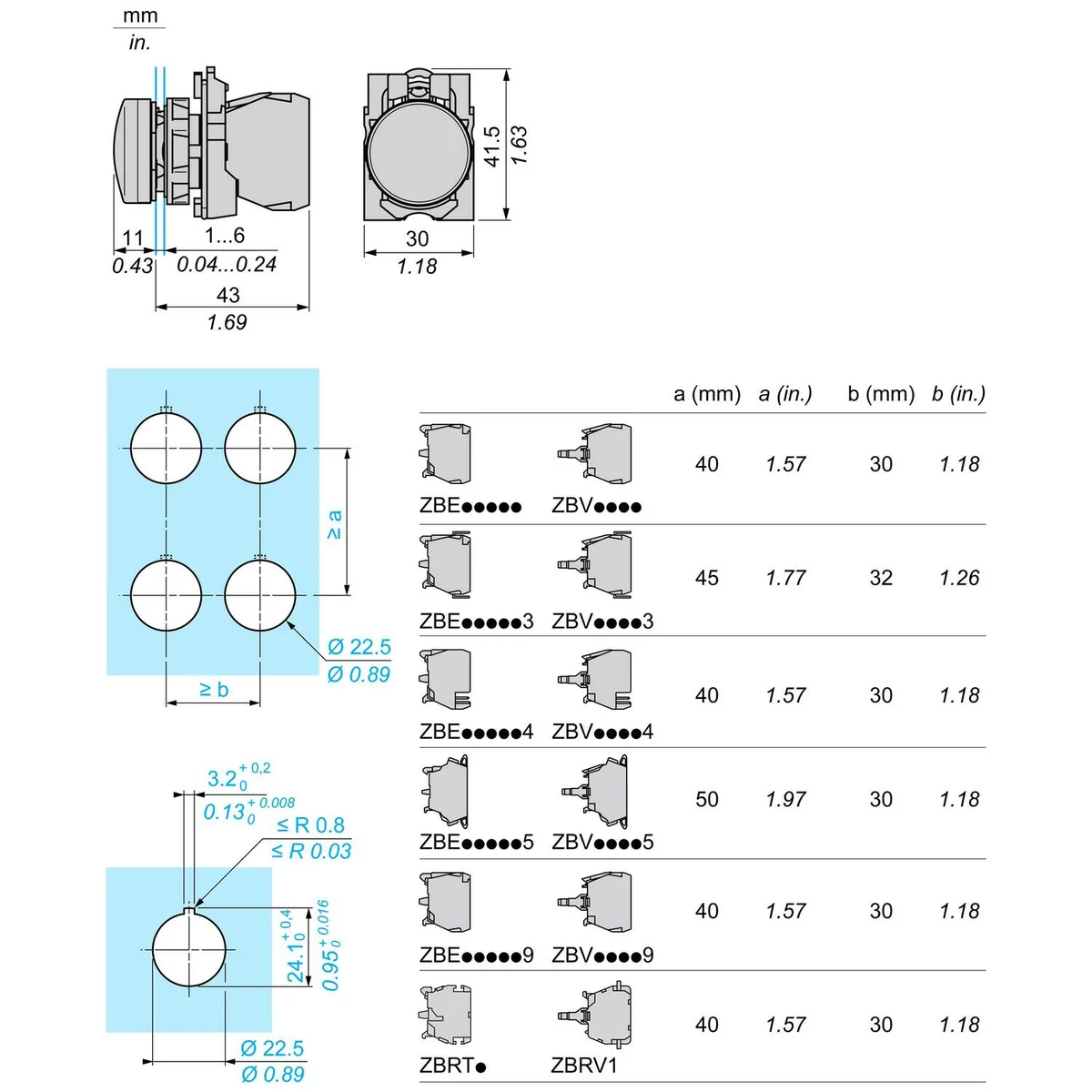

| Kode Produk | XB5AVB3 |
| Brand | Schneider Electric |
| Arus konsumsi | 18 mA |
| Batas tegangan suplai | 19.2…30 V DC, 21.6…26.4 V AC |
| Bentuk kepala unit pensinyalan | Round |
| Berat produk | 0.038 kg |
| Bezel material | Dark grey plastic |
| Bulb base | Integral LED |
| Electromagnetic emission | Class B conforming to IEC 55011 |
| Enclosure tipe | UL type 4X/13 |
| Fixing collar material | Plastic |
| GCR bridge | XB5AVCUST03 |
| IK degree proteksi | IK05 conforming to IEC 50102 |
| Informasi tambahan operator | With plain lens |
| Kategori tegangan lebih | Class II conforming to IEC 60536 |
| Kedalaman | 54 mm |
| Ketahanan getaran | 5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6 |
| Ketahanan kejut | 50 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Kode kompatibilitas | XB5 |
| Kompatibilitas elektromagnetik | Electrostatic discharge - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2, Electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2, Electromagnetic emission class B conforming to IEC 55011 |
| Koneksi - terminal | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1, Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1 |
| Lebar | 30 mm |
| Light source | Universal LED |
| Light source warna | Green |
| Nama singkat perangkat | XB5 |
| Pemasangan diameter | 22.5 mm |
| Presentasi perangkat | Complete product |
| Protective treatment | TH |
| Rangkaian produk | Harmony XB5 |
| Resistansi to electromagnetic fields | 10 V/m conforming to IEC 61000-4-3 |
| Resistansi to electrostatic discharge | 6 kV on contact (on metal parts) conforming to IEC 61000-4-2, 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2 |
| Resistansi to fast transients | 2 kV conforming to IEC 61000-4-4 |
| Resistansi to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Sale per indivisible quantity | 1 |
| Sertifikasi produk | CSA, UL listed |
| Service life | 100000 h at rated voltage and 25 °C |
| Signalling tipe | Steady |
| Standar | UL 508, IEC 60947-5-1, IEC 60947-5-4, IEC 60947-1, CSA C22.2 No 14, JIS C8201-5-1, JIS C8201-1 |
| Suhu udara lingkungan untuk operasi | -40…70 °C |
| Suhu udara lingkungan untuk penyimpanan | -40…70 °C |
| Surge withstand | 1 kV conforming to IEC 61000-4-5 |
| Terminals deskripsi ISO n°1 | (X1-X2)PL |
| Tinggi | 42 mm |
| Tingkat proteksi IP | IP66 conforming to IEC 60529, IP67 conforming to IEC 60529, IP69 conforming to IEC 60529, IP69K conforming to ISO 20653 |
| Tipe kepala | Standard |
| Tipe produk atau komponen | Pilot light |
| Warna tutup/operator atau lensa | Green |
| [Ui] Tegangan isolasi terukur | 250 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] Tegangan tahan impuls terukur | 4 kV conforming to IEC 60947-1 |
| [Us] Terukur suplai tegangan | 24 V AC/DC at 50/60 Hz |
