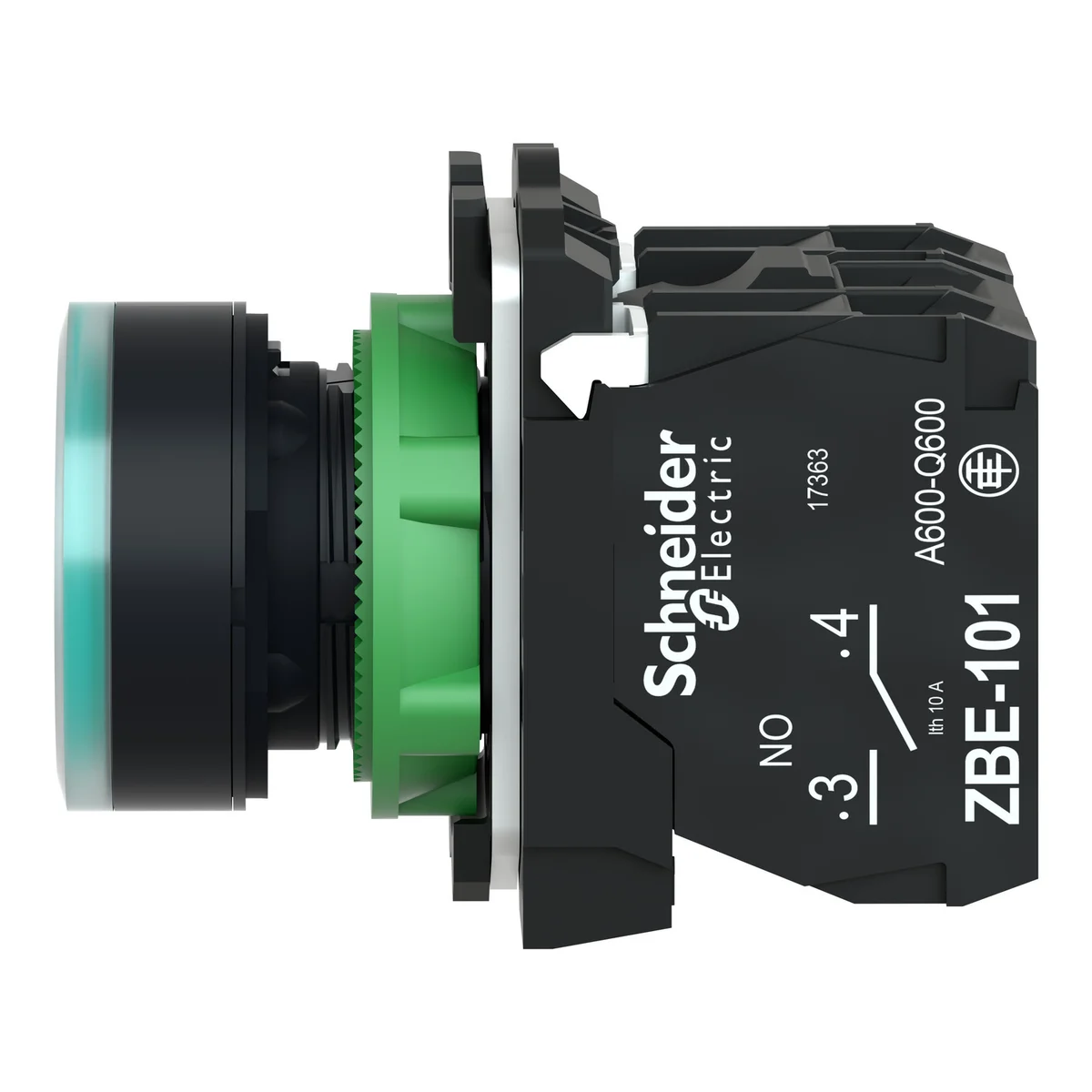

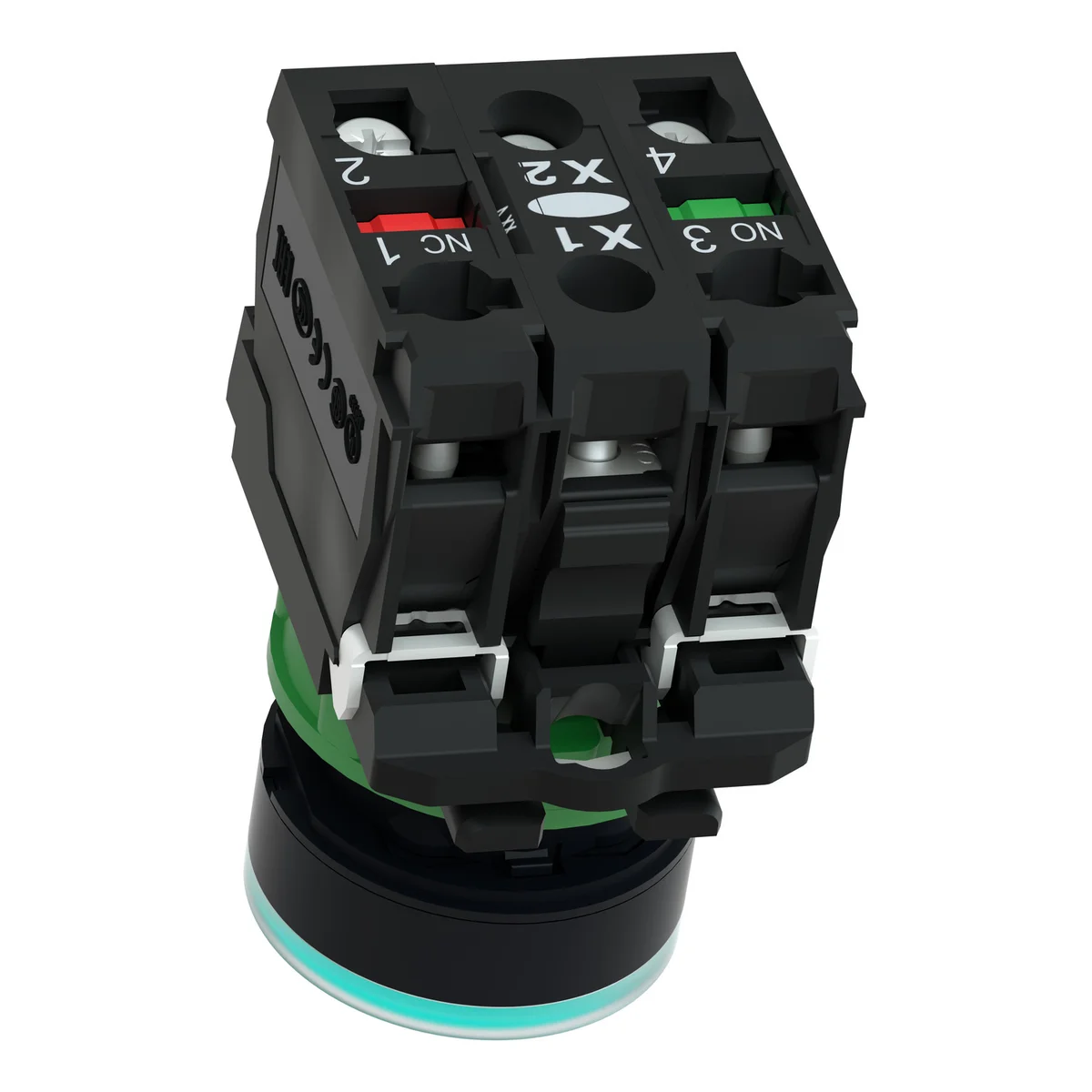

green flush complete illum pushbutton Ø22 spring return 1NO+1NC 250V
Ø 22 mm plastic push buttons, switches, pilot lights
This Harmony XB5, plain lens illuminated modular green push button operates with a spring return / impulse mechanism, is supplied with 250V AC/DC and uses screw-clamp terminals. This illuminated push button with integral transformer provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66/IP67/IP69/IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Detail Produk
| Kode Produk | XB5AW3365 |
| Brand | Schneider Electric |
| Bentuk kepala sekrup | Cross compatible with Philips no 1 screwdriver, Cross compatible with pozidriv No 1 screwdriver, Slotted compatible with flat Ø 4 mm screwdriver, Slotted compatible with flat Ø 5.5 mm screwdriver |
| Bentuk kepala unit pensinyalan | Round |
| Berat produk | 0.057 kg |
| Bezel material | Dark grey plastic |
| Bulb base | BA 9s |
| Contact operation | Slow-break |
| Contacts usage | Standard contacts |
| Durabilitas listrik | 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
| Durabilitas mekanis | 10000000 cycles |
| Enclosure tipe | UL type 4X/13 |
| Fixing collar material | Plastic |
| Hubung singkat proteksi | 10 A cartridge fuse type gG conforming to IEC 60947-5-1 |
| IK degree proteksi | IK05 conforming to IEC 50102 |
| Informasi tambahan operator | With plain lens |
| Kategori tegangan lebih | Class II conforming to IEC 60536 |
| Keandalan listrik | Λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to IEC 60947-5-4, Λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to IEC 60947-5-4 |
| Kedalaman | 54 mm |
| Ketahanan getaran | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Ketahanan kejut | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Koneksi - terminal | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1, Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1 |
| Lebar | 30 mm |
| Light block suplai | Direct <2.4 W |
| Light source | Bulb not included |
| Material kontak | Silver alloy (Ag/Ni) |
| Nama singkat perangkat | XB5 |
| Operating force | 3.5 N NC changing electrical state, 3.8 N |
| Operating travel | 1.5 mm (NC changing electrical state), 2.6 mm (NO changing electrical state), 4.3 mm (total travel) |
| Pemasangan diameter | 22.5 mm |
| Positive opening | With conforming to IEC 60947-5-1 appendix K |
| Presentasi perangkat | Complete product |
| Profil operator | Green flush, unmarked |
| Protective treatment | TH |
| Rangkaian produk | Harmony XB5 |
| Resistansi to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Sale per indivisible quantity | 1 |
| Sertifikasi produk | CSA, LROS (Lloyds register of shipping), BV, UL listed, DNV |
| Signalling tipe | Steady |
| Standar | CSA C22.2 No 14, JIS C8201-5-1, IEC 60947-5-4, IEC 60947-1, UL 508, IEC 60947-5-1, JIS C8201-1 |
| Suhu udara lingkungan untuk operasi | -40…55 °C |
| Suhu udara lingkungan untuk penyimpanan | -40…70 °C |

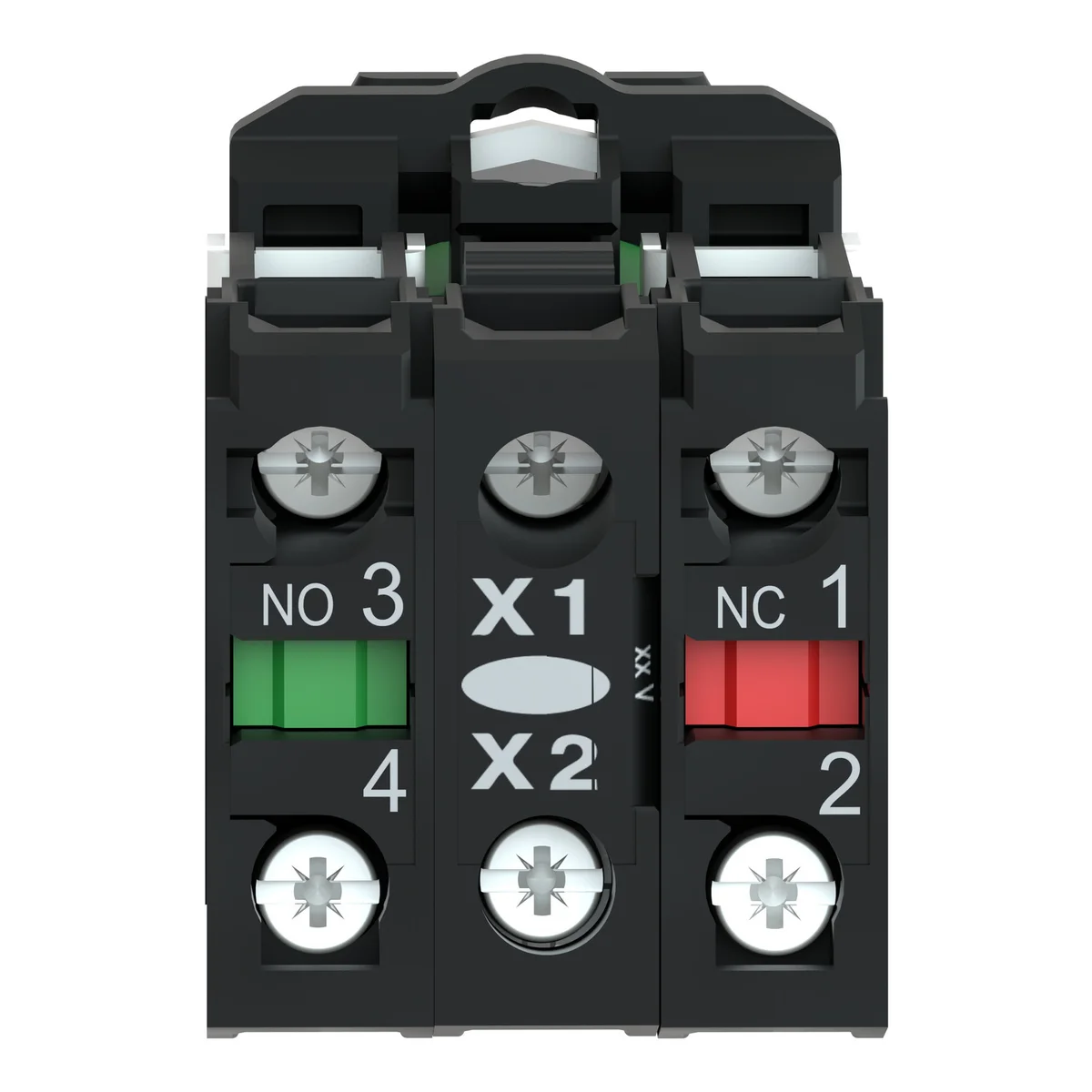

| Terminals deskripsi ISO n°1 | (13-14)NO, (21-22)NC |
| Tinggi | 42 mm |
| Tingkat proteksi IP | IP66 conforming to IEC 60529, IP69, IP69K, IP67 |
| Tipe dan komposisi kontak | 1 NO + 1 NC |
| Tipe kepala | Standard |
| Tipe operator | spring return |
| Tipe produk atau komponen | Illuminated push-button |
| Torsi pengencangan | 0.8…1.2 N.m conforming to IEC 60947-1 |
| Warna tutup/operator atau lensa | Green |
| [Ie] Arus operasional terukur | 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1, 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1, 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1, 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1, 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1, 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1 |
| [Ith] Arus termal udara bebas konvensional | 10 A conforming to IEC 60947-5-1 |
| [Ui] Tegangan isolasi terukur | 600 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] Tegangan tahan impuls terukur | 6 kV conforming to IEC 60947-1 |
| [Us] Terukur suplai tegangan | <= 250 V |
