iCT 16A 1NO 1NC 230...240V 50Hz contactor
Contactors

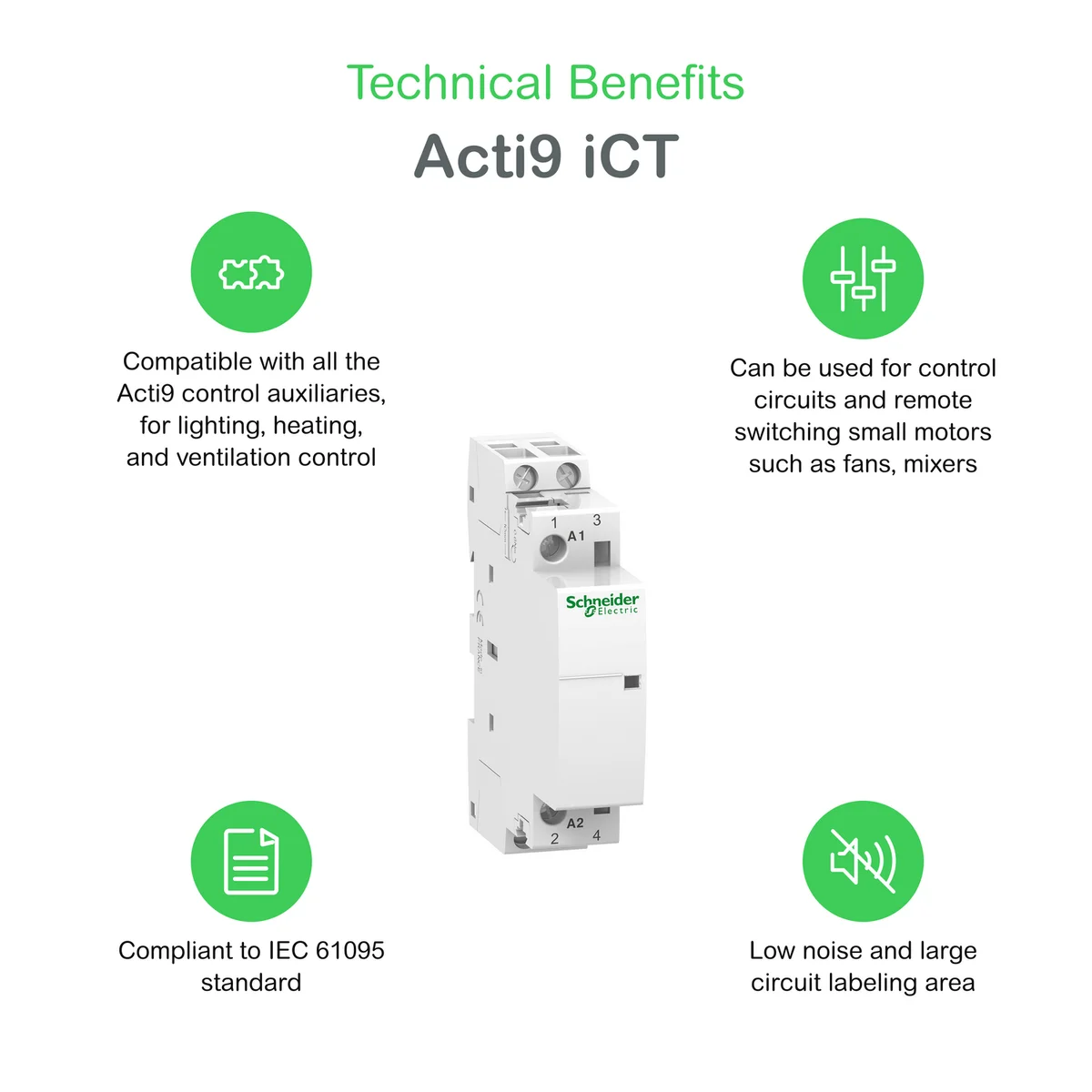

This Acti9 iCT is a modular contactor. It is a 2P remote control device with 1 normally open contact and 1 normally close contact. The In rated current is 16A for AC-7a and 6A for AC-7b. The Ue rated operational voltage is 250VAC. The Uc control voltage is 230VAC to 240VAC. This device could be used for control circuits. This device could be used for remote switching small motors (fans, mixers) or HVAC system applications. It is compatible with all the Acti9 control auxiliaries, for lighting, heating & ventilation control applications. This product is compliant with IEC/EN 61095. Electrical endurance goes up to 100000 cycles for AC-7A or AC-1, 30000 cycles for AC-7C, AC-7B, AC-3, AC-5A or AC-5B The maximum switching operations is 6 per minute. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. Pollution degree is 2. It is DIN rail mountable. Its width is 2 pitches of 9mm. The product color is white (RAL9003). The dimensions are (W) 81mm x (H) 18mm x (D) 60mm. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -5°C to 60 °C. The storage temperature is from -40°C to 70°C.
Detail Produk
| Kode Produk | A9C22715 |
| Brand | Schneider Electric |
| Aplikasi perangkat | Motor-heating-lighting |
| Daya maksimum | 1.2 W at 250 V AC |
| Dudukan pemasangan | 35 mm symmetrical DIN rail |
| Durabilitas listrik | 100000 cycles IEC/EN 61095 16 A 50 Hz AC-7A, 30000 cycles IEC/EN 61095 6 A 50 Hz AC-7B, 30000 cycles IEC/EN 61095 50 Hz AC-7C, 100000 cycles EN/IEC 60947-4-1 50 Hz AC-1, 30000 cycles EN/IEC 60947-4-1 50 Hz AC-3, 30000 cycles EN/IEC 60947-4-1 50 Hz AC-5a, 30000 cycles EN/IEC 60947-4-1 50 Hz AC-5b |
| Durabilitas mekanis | 1000000 cycles |
| Frekuensi jaringan | 50 Hz |
| Frekuensi switching | 100 switching operations/day |
| Hold-in power konsumsi in VA | 2.7 VA |
| Inrush power in VA | 9.2 VA |
| Jumlah pitch 9 mm | 2 |
| Kedalaman | 60 mm |
| Kelembapan relatif | 95 % at 55 °C |
| Kode kompatibilitas | ICT |
| Koneksi - terminal | Control circuit: tunnel type terminals2 cable(s) 1.5 mm² rigid, Power circuit: tunnel type terminals1 cable(s) 1…4 mm² flexible, Power circuit: tunnel type terminals1 cable(s) 1.5…6 mm² rigid, Control circuit: tunnel type terminals1 cable(s) 1.5…2.5 mm² rigid, Control circuit: tunnel type terminals2 cable(s) 1.5…2.5 mm² flexible |
| Kontrol signal tipe | Maintained |
| Kutub | 2P |
| Lebar | 18 mm |
| Market segment | Residential, Small commercial |
| Mode pemasangan | Clip-on |
| Nama produk | Acti9 iCT |
| Nama singkat perangkat | iCT |
| Operating altitude | 2000 m |
| Pensinyalan lokal | Action indicator |
| Pole contact composition | 1 NO + 1 NC |
| Produk kompatibilitas | IACTs |
| Rentang produk | Acti9 |
| Standar | IEC/EN 61095 |
| Suhu udara lingkungan untuk operasi | -5…60 °C |
| Suhu udara lingkungan untuk penyimpanan | -40…70 °C |
| Tinggi | 81 mm |
| Tingkat kebisingan | 30 dB |
| Tingkat polusi | 2 |
| Tingkat proteksi IP | IP20 |
| Tipe jaringan | AC |
| Tipe kontrol | Remote control |
| Tipe produk atau komponen | Contactor |
| Torsi pengencangan | Control circuit: 0.8 N.m, Power circuit: 0.8 N.m |
| Tropikalisasi | 2 conforming to EN 60947-4-1, 2 conforming to EN 61095, 2 conforming to IEC 1095 |
| Warna | White |
| [Ie] Arus operasional terukur | 16 A AC-7A, 6 A AC-7B |
| [Uc] Tegangan sirkuit kontrol | 230...240 V AC 50 Hz |
| [Ue] Tegangan operasional terukur | 250 V AC 50 Hz |
| [Ui] Tegangan isolasi terukur | 500 V AC 50/60 Hz |
| [Uimp] Tegangan tahan impuls terukur | 4 kV |
