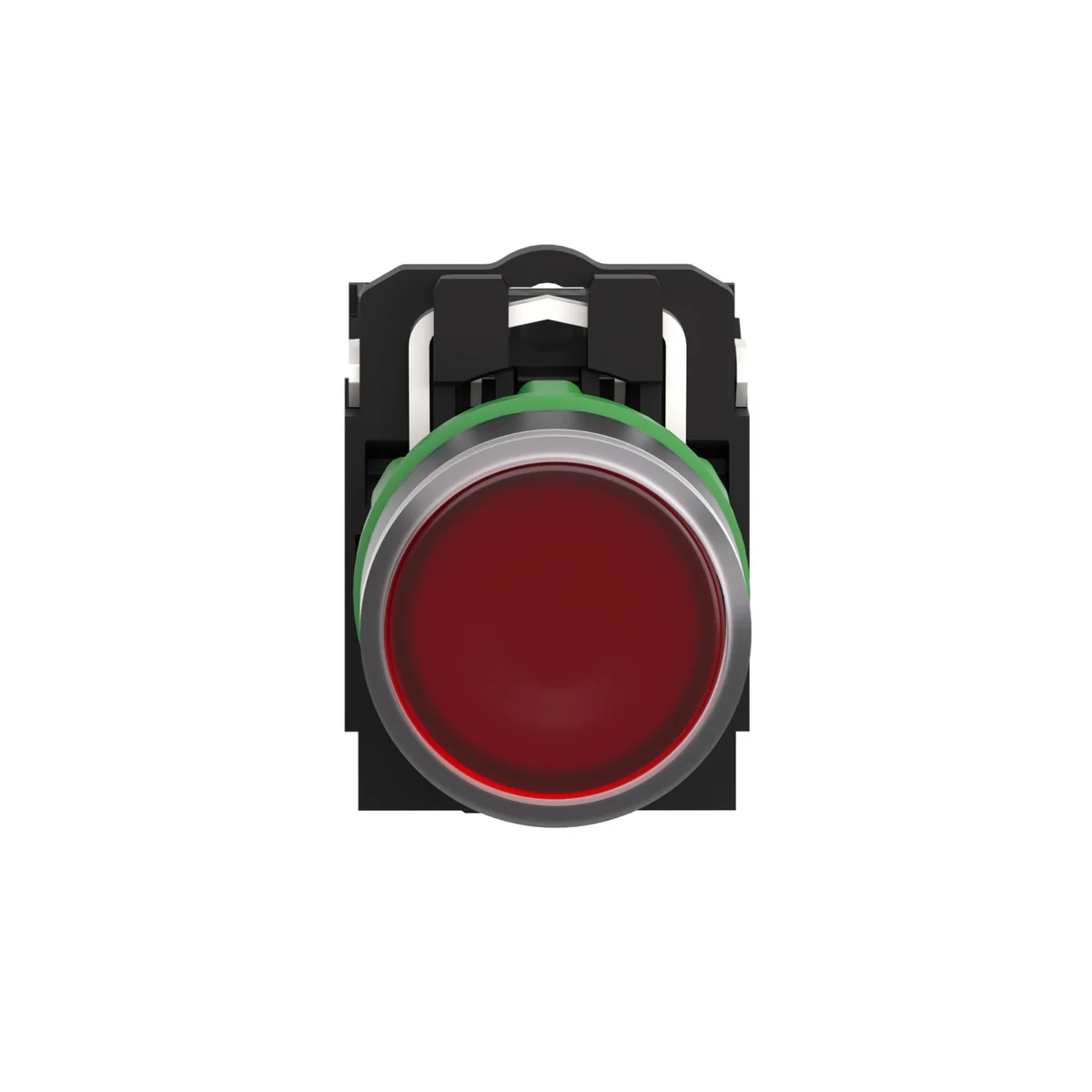

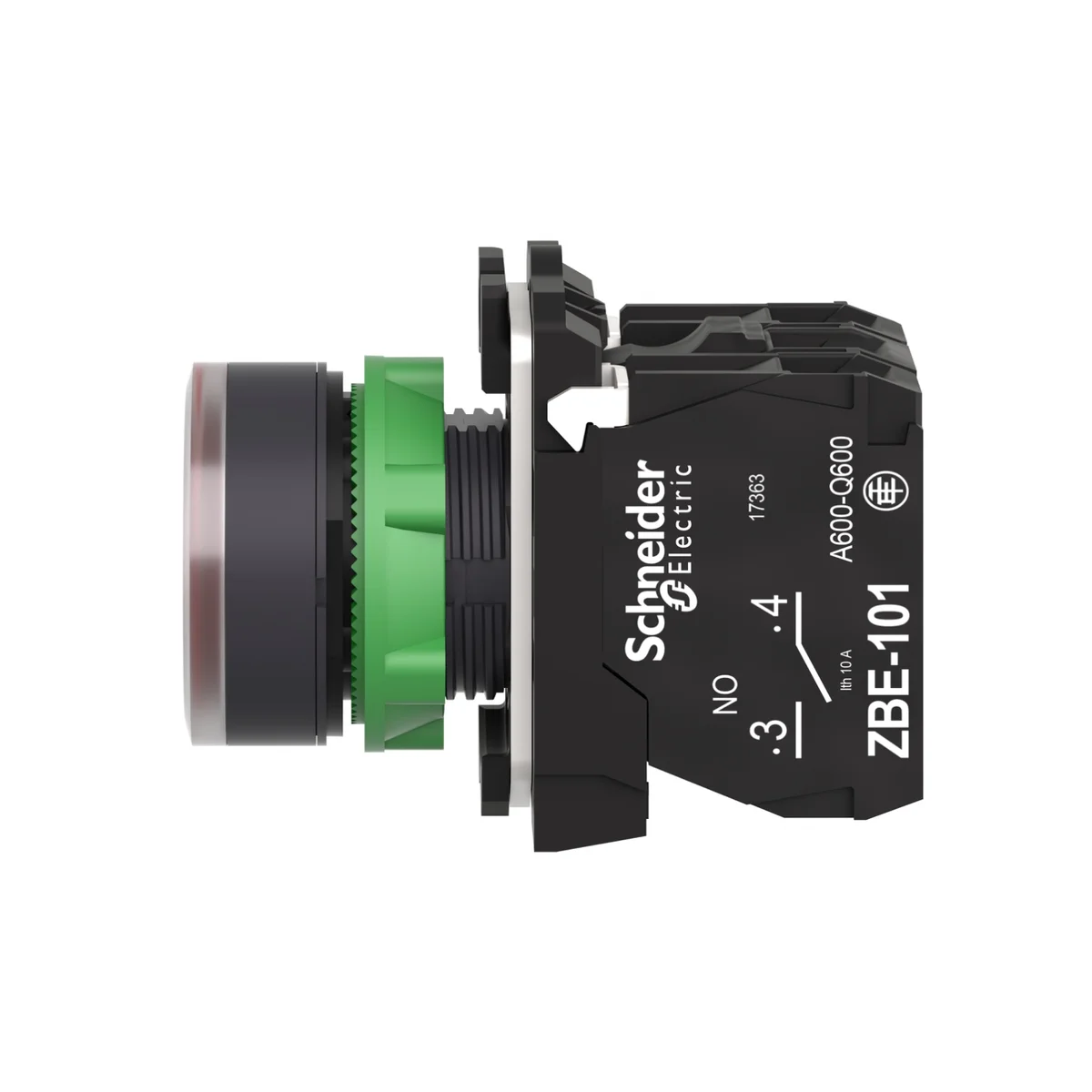

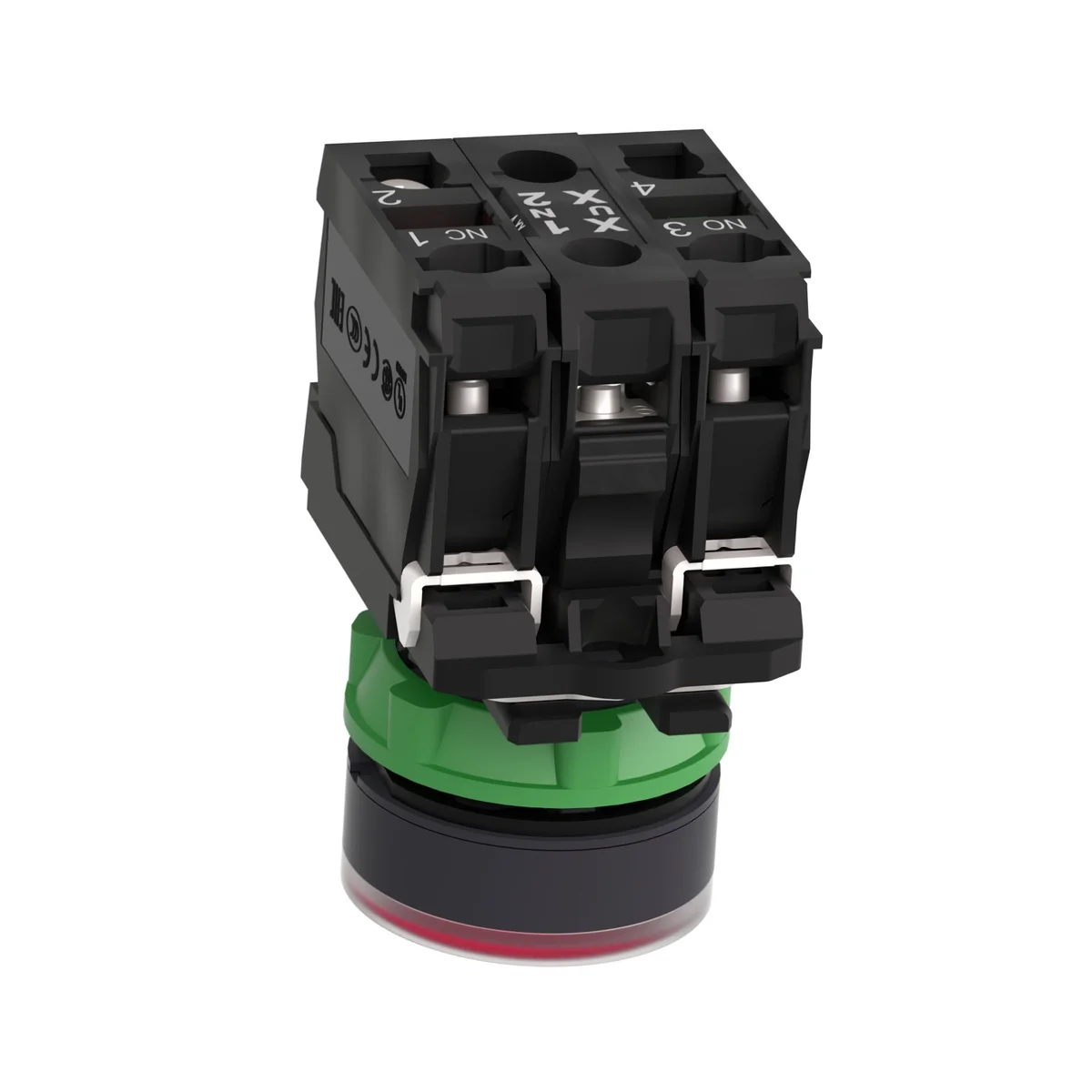

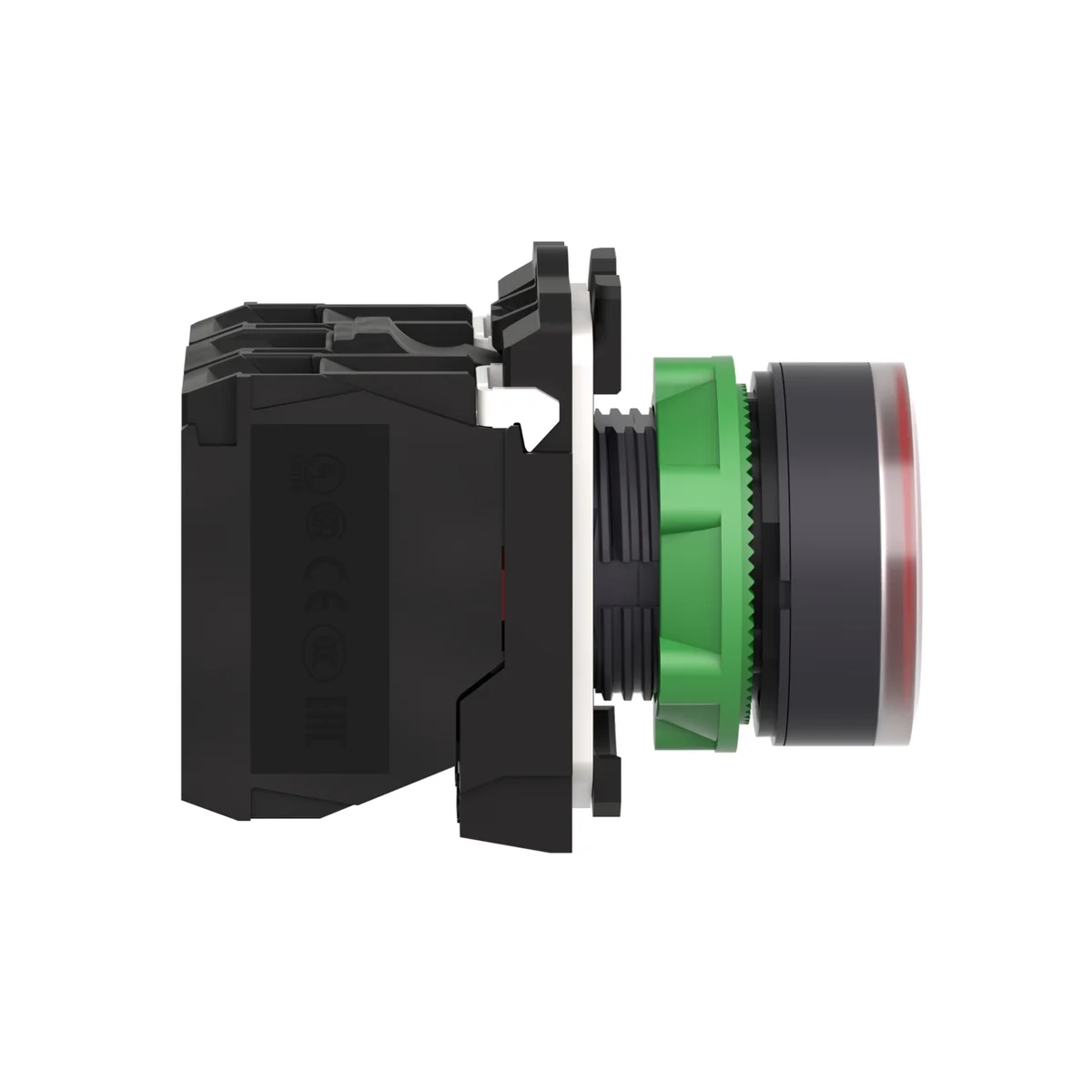

red flush complete illum pushbutton Ø22 spring return 1NO+1NC 220...240V
Ø 22 mm plastic push buttons, switches, pilot lights
This Harmony XB5, illuminated modular red push button operates with a spring return mechanism, is supplied with 220V to 240V AC, uses an integral LED and screw clamp terminals. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Detail Produk
| Kode Produk | XB5AW34M5 |
| Brand | Schneider Electric |
| Arus konsumsi | 14 mA |
| Batas tegangan suplai | 195…264 V AC |
| Bentuk kepala sekrup | Cross compatible with Philips no 1 screwdriver, Cross compatible with pozidriv No 1 screwdriver, Slotted compatible with flat Ø 4 mm screwdriver, Slotted compatible with flat Ø 5.5 mm screwdriver |
| Bentuk kepala unit pensinyalan | Round |
| Berat produk | 0.056 kg |
| Bezel material | Dark grey plastic |
| Bulb base | Integral LED |
| Contact operation | Slow-break |
| Contacts usage | Standard contacts |
| Durabilitas listrik | 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
| Durabilitas mekanis | 10000000 cycles |
| Electromagnetic emission | Class B conforming to IEC 55011 |
| Enclosure tipe | UL type 4X/13 |
| Fixing collar material | Plastic |
| Hubung singkat proteksi | 10 A cartridge fuse type gG conforming to IEC 60947-5-1 |
| IK degree proteksi | IK05 conforming to IEC 50102 |
| Informasi tambahan operator | With plain lens |
| Kategori tegangan lebih | Class II conforming to IEC 60536 |
| Keandalan listrik | Λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to IEC 60947-5-4, Λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to IEC 60947-5-4 |
| Kedalaman | 57 mm |
| Ketahanan getaran | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Ketahanan kejut | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Koneksi - terminal | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1, Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1 |
| Lebar | 30 mm |
| Light source | Universal LED |
| Material kontak | Silver alloy (Ag/Ni) |
| Nama singkat perangkat | XB5 |
| Operating force | 3.5 N NC changing electrical state, 3.8 N |
| Operating travel | 1.5 mm (NC changing electrical state), 2.6 mm (NO changing electrical state), 4.3 mm (total travel) |
| Pemasangan diameter | 22.5 mm |
| Positive opening | With conforming to IEC 60947-5-1 appendix K |
| Presentasi perangkat | Complete product |
| Profil operator | Red flush, unmarked |
| Protective treatment | TH |
| Rangkaian produk | Harmony XB5 |
| Resistansi to electromagnetic fields | 10 V/m conforming to IEC 61000-4-3 |
| Resistansi to electrostatic discharge | 6 kV on contact (on metal parts) conforming to IEC 61000-4-2, 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2 |
| Resistansi to fast transients | 2 kV conforming to IEC 61000-4-4 |
| Resistansi to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Sale per indivisible quantity | 1 |
| Sertifikasi produk | CSA, LROS (Lloyds register of shipping), BV, UL listed, DNV |
| Service life | 100000 h at rated voltage and 25 °C |
| Signalling tipe | Steady |
| Standar | JIS C8201-5-1, IEC 60947-5-4, UL 508, IEC 60947-1, CSA C22.2 No 14, IEC 60947-5-1, JIS C8201-1 |
| Suhu udara lingkungan untuk operasi | -40…70 °C |
| Suhu udara lingkungan untuk penyimpanan | -40…70 °C |
| Surge withstand | 1 kV conforming to IEC 61000-4-5 |

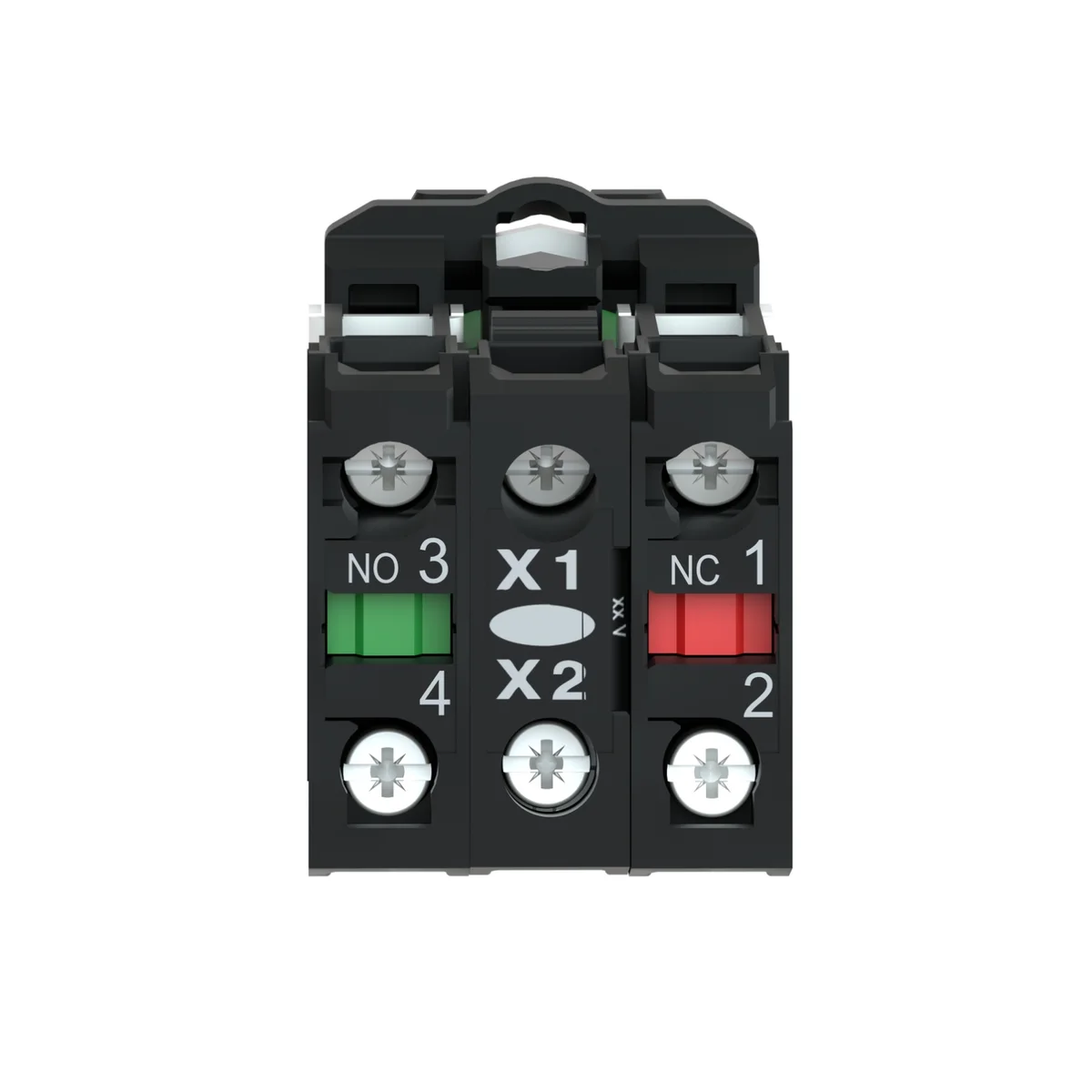

| Terminals deskripsi ISO n°1 | (21-22)NC, (13-14)NO |
| Tinggi | 42 mm |
| Tingkat proteksi IP | IP66 conforming to IEC 60529, IP69, IP69K, IP67 |
| Tipe dan komposisi kontak | 1 NO + 1 NC |
| Tipe kepala | Standard |
| Tipe operator | spring return |
| Tipe produk atau komponen | Illuminated push-button |
| Torsi pengencangan | 0.8…1.2 N.m conforming to IEC 60947-1 |
| Warna tutup/operator atau lensa | Red |
| [Ie] Arus operasional terukur | 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1, 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1, 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1, 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1, 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1, 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1 |
| [Ith] Arus termal udara bebas konvensional | 10 A conforming to IEC 60947-5-1 |
| [Ui] Tegangan isolasi terukur | 600 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] Tegangan tahan impuls terukur | 6 kV conforming to IEC 60947-1 |
| [Us] Terukur suplai tegangan | 230...240 V AC 50/60 Hz |
