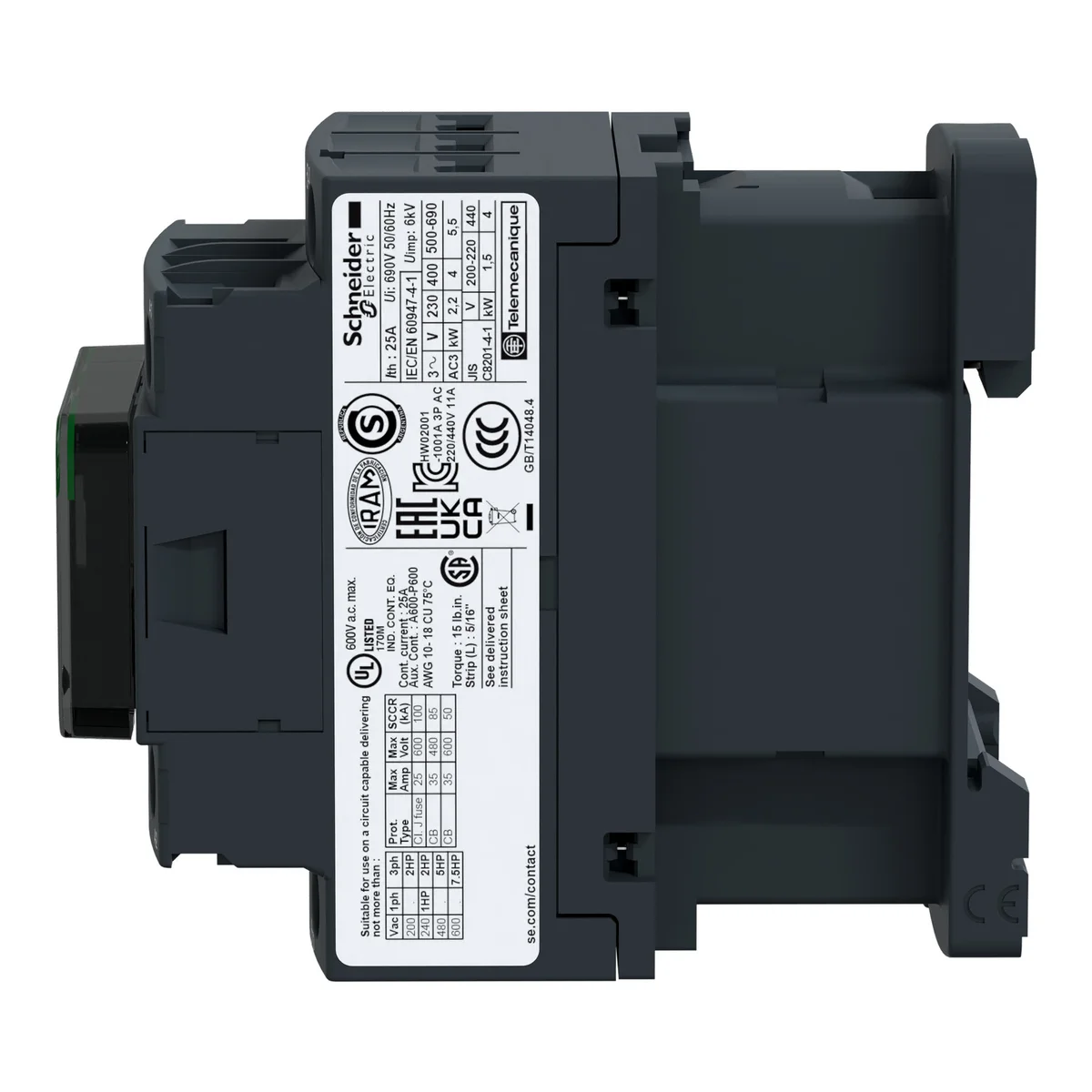

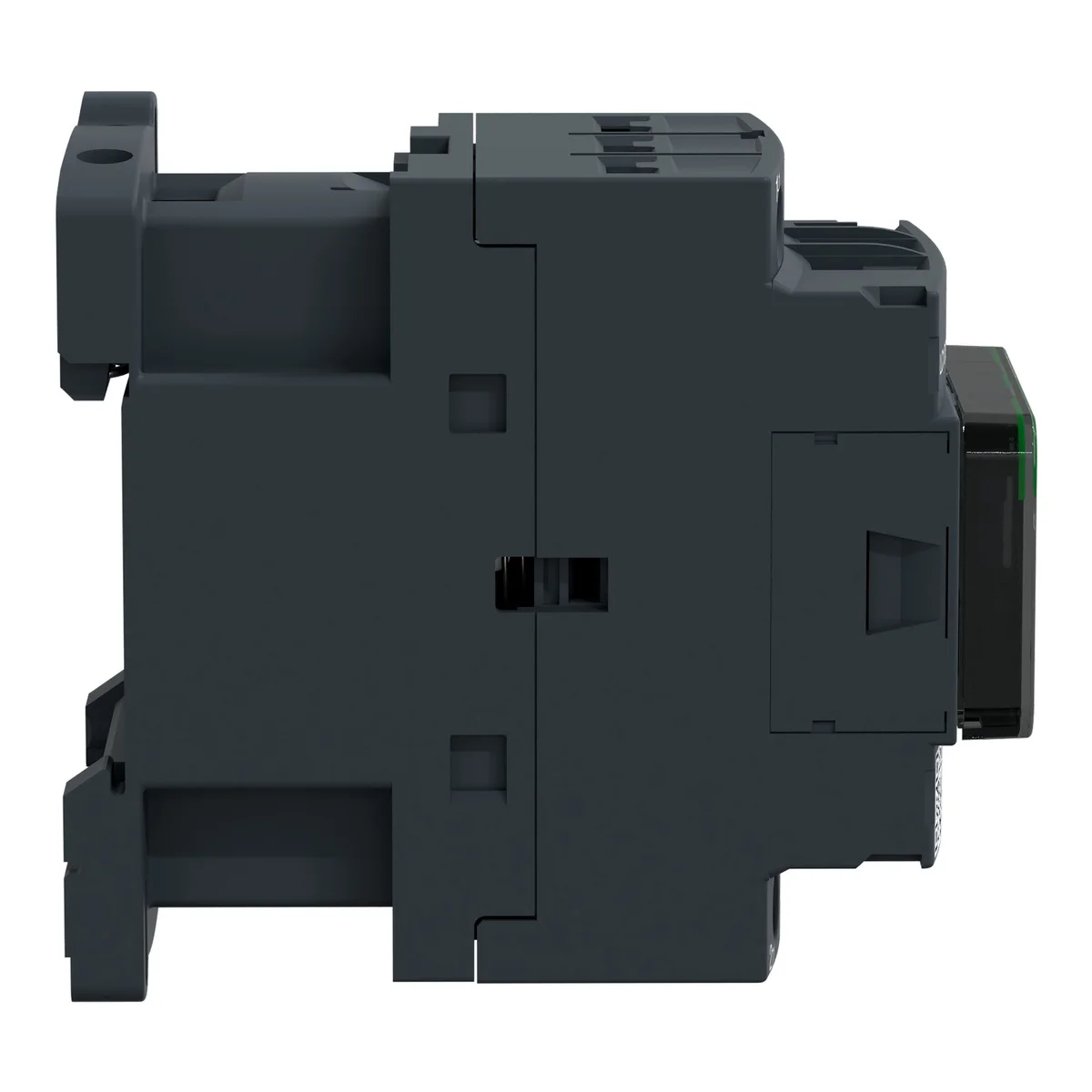

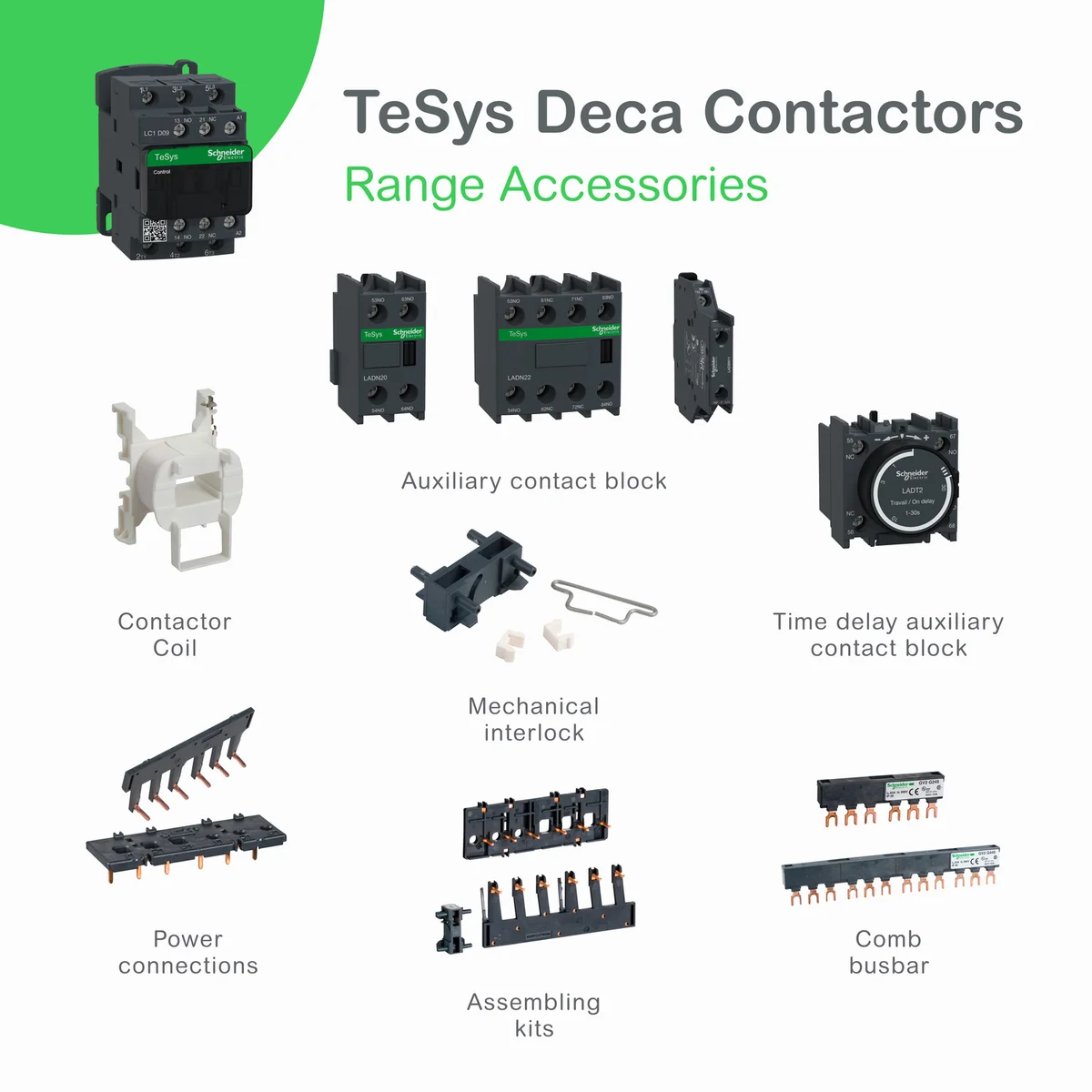

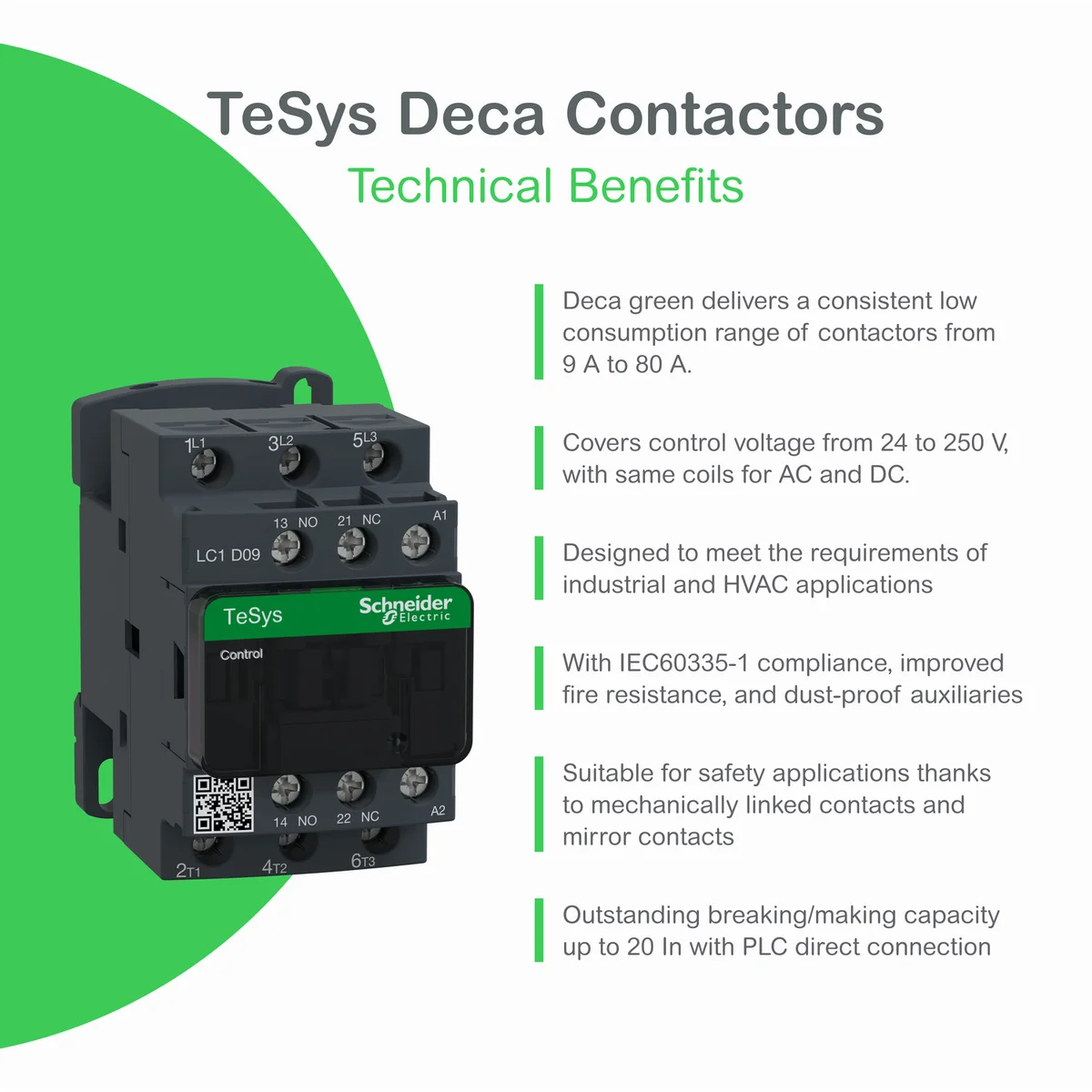

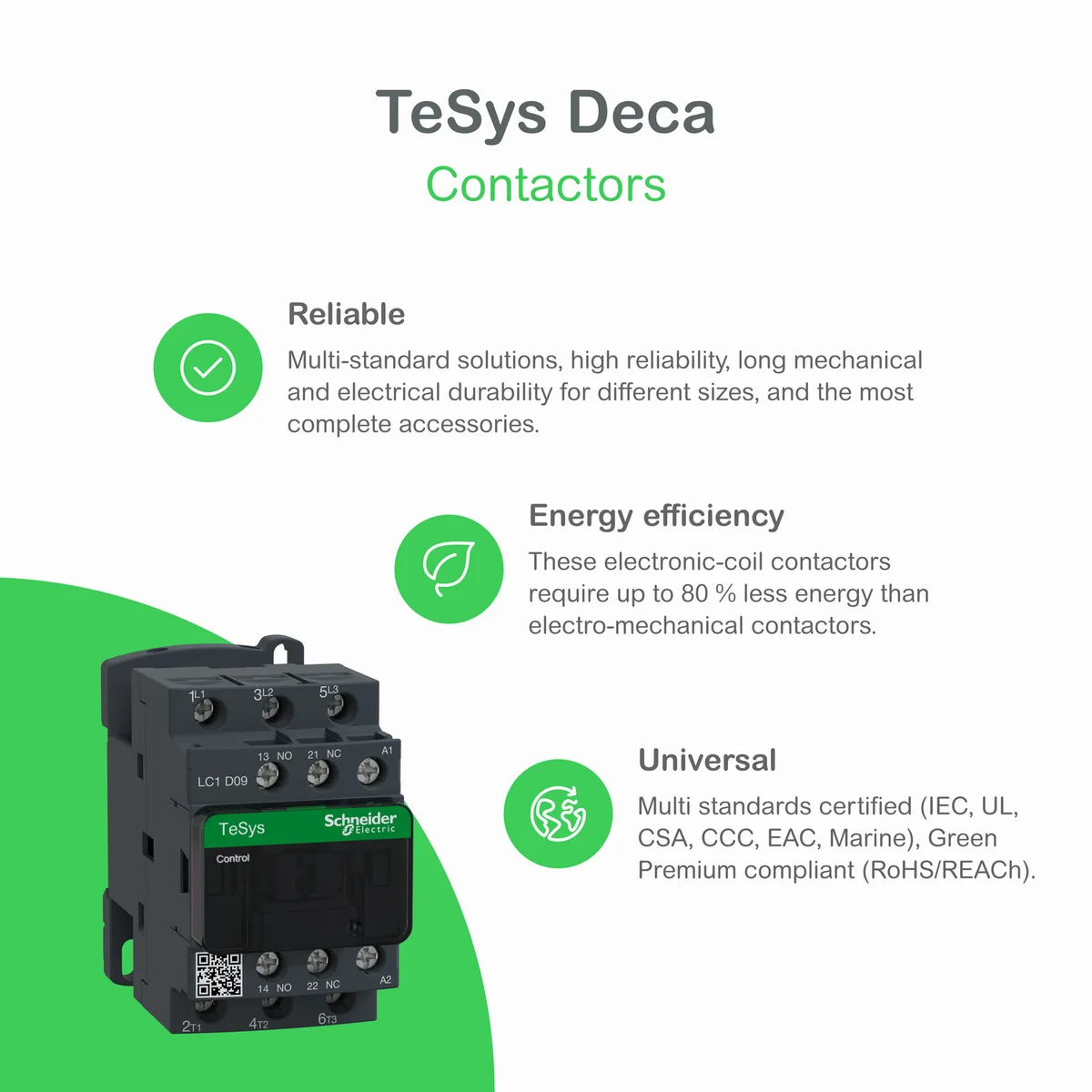

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 38 A - 110 V AC 50/60 Hz coil
Contactors to control motors up to 150 A (75 kW / 400 V)
TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 38A/690V AC-3/3e (18.5kW@400V). It provides a 110V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Detail Produk
| Kode Produk | LC1D38F7 |
| Brand | Schneider Electric |
| Aplikasi kontaktor | Resistive load, Motor control |
| Berat produk | 0.38 kg |
| Climatic withstand | conforming to IACS E10 exposure to damp heat, conforming to IEC 60947-1 Annex Q category D exposure to damp heat |
| Deskripsi kutub | 3P |
| Diizinkan ambient air temperature around the perangkat | -40…60 °C, 60…70 °C with derating |

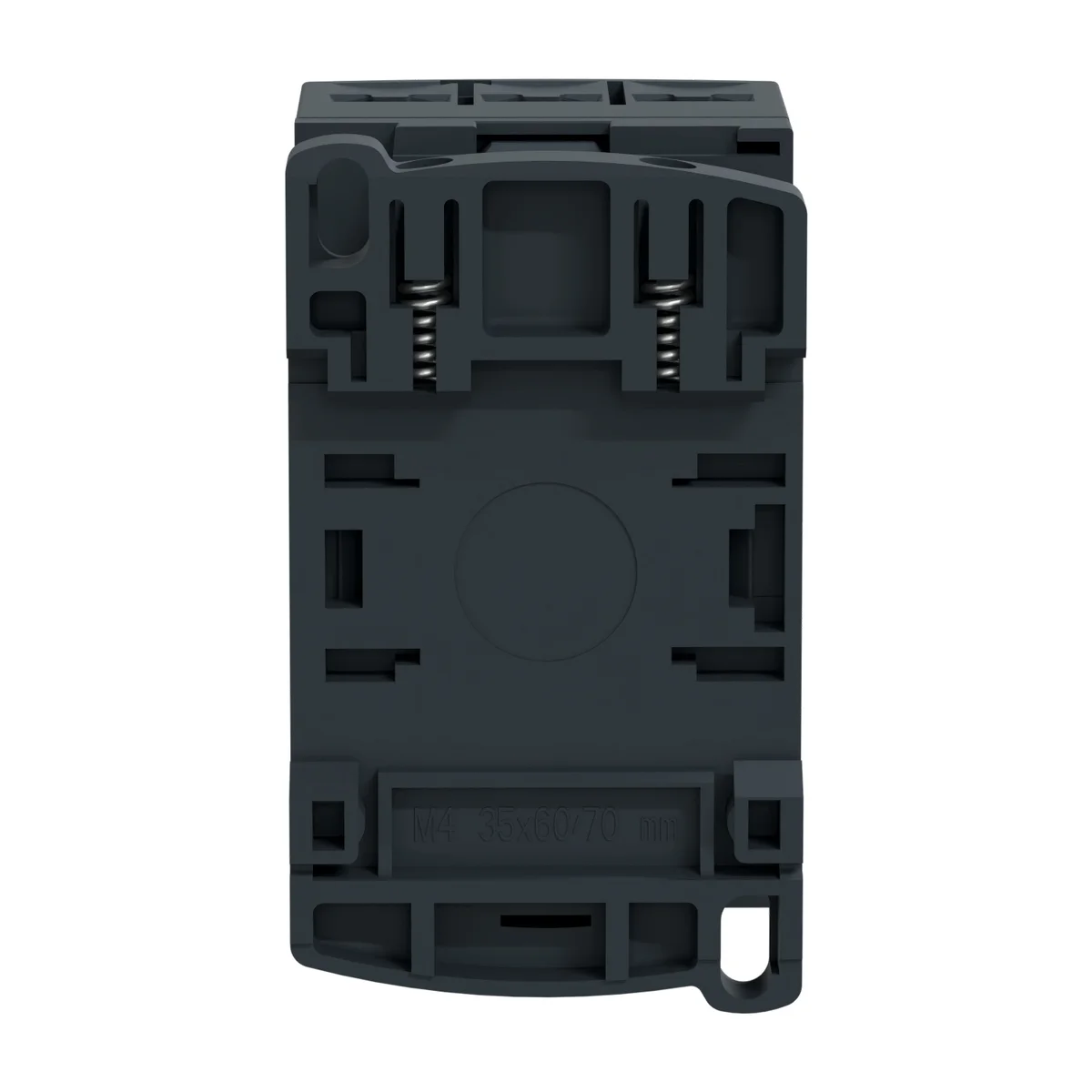

| Dudukan pemasangan | Plate, Rail |
| Durabilitas listrik | 1.4 Mcycles 50 A AC-1 at Ue <= 440 V, 1.4 Mcycles 38 A AC-3 at Ue <= 440 V, 1.4 Mcycles 38 A AC-3e at Ue <= 440 V |
| Durabilitas mekanis | 15 Mcycles |
| Fire resistansi | 850 °C conforming to IEC 60695-2-1 |
| Flame retardance | V1 conforming to UL 94 |
| Heat dissipation | 2…3 W at 50/60 Hz |
| Hold-in power konsumsi in VA | 7.5 VA 60 Hz cos phi 0.3 (at 20 °C), 7 VA 50 Hz cos phi 0.3 (at 20 °C) |
| Inrush power in VA | 70 VA 60 Hz cos phi 0.75 (at 20 °C), 70 VA 50 Hz cos phi 0.75 (at 20 °C) |
| Insulation resistansi | > 10 MOhm for signalling circuit |
| Irms terukur making capacity | 140 A AC for signalling circuit conforming to IEC 60947-5-1, 250 A DC for signalling circuit conforming to IEC 60947-5-1, 550 A at 440 V for power circuit conforming to IEC 60947 |
| Kategori tegangan lebih | III |
| Kedalaman | 92 mm |
| Kode kompatibilitas | LC1D |
| Komposisi kontak bantu | 1 NO + 1 NC |
| Koneksi - terminal | Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end, Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end, Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end, Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end, Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end, Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end, Power circuit: screw clamp terminals 1 2.5…10 mm² - cable stiffness: flexible without cable end, Power circuit: screw clamp terminals 2 2.5…10 mm² - cable stiffness: flexible without cable end, Power circuit: screw clamp terminals 1 1…10 mm² - cable stiffness: flexible with cable end, Power circuit: screw clamp terminals 2 1.5…6 mm² - cable stiffness: flexible with cable end, Power circuit: screw clamp terminals 1 1.5…10 mm² - cable stiffness: solid without cable end, Power circuit: screw clamp terminals 2 2.5…10 mm² - cable stiffness: solid without cable end |
| Kontrol sirkuit tegangan batas | 0.3...0.6 Uc (-40…70 °C):drop-out AC 50/60 Hz, 0.8...1.1 Uc (-40…60 °C):operational AC 50 Hz, 0.85...1.1 Uc (-40…60 °C):operational AC 60 Hz, 1...1.1 Uc (60…70 °C):operational AC 50/60 Hz |
| Kontrol sirkuit tipe | AC at 50/60 Hz |
| Kumparan technology | Without built-in suppressor module |
| Laju operasi maksimum | 3600 cyc/h at 60 °C |
| Lebar | 45 mm |
| Mechanical robustness | Vibrations contactor open (2 Gn, 5...300 Hz), Vibrations contactor closed (4 Gn, 5...300 Hz), Shocks contactor closed (15 Gn for 11 ms), Shocks contactor open (8 Gn for 11 ms) |
| Minimum switching arus | 5 mA for signalling circuit |
| Motor power hp | 10 hp at 230/240 V AC 50/60 Hz for 3 phases motors, 10 hp at 200/208 V AC 50/60 Hz for 3 phases motors, 5 hp at 240 V AC 50/60 Hz for 1 phase motors, 20 hp at 480 V AC 50/60 Hz for 3 phases motors, 25 hp at 600 V AC 50/60 Hz for 3 phases motors |
| Motor power kw | 18.5 kW at 500 V AC 50/60 Hz, 18.5 kW at 660...690 V AC 50/60 Hz, 18.5 kW at 380...400 V AC 50/60 Hz, 9 kW at 220...230 V AC 50/60 Hz, 18.5 kW at 415...440 V AC 50/60 Hz |
| Nama singkat perangkat | LC1D |
| Non-overlap time | 1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact |
| Operating altitude | 0...3000 m |
| Pole contact composition | 3 NO |
| Power dissipation per pole | 5 W AC-1, 3 W AC-3, 3 W AC-3e |
| Protective cover | With |
| Protective treatment | TH conforming to IEC 60068-2-30 |
| Rangkaian | TeSys, TeSys Deca |
| Rangkaian produk | TeSys Deca |
| Rata-rata impedance | 2 mOhm - Ith 50 A 50 Hz for power circuit |
| Rating sekring terkait | 10 A gG for signalling circuit conforming to IEC 60947-5-1, 63 A gG at <= 690 V coordination type 1 for power circuit, 63 A gG at <= 690 V coordination type 2 for power circuit |
| Safety keandalan level | B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1, B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 |
| Sertifikasi produk | UL, CCC, CSA, Marine, UKCA, EAC, CB Scheme |
| Signalling sirkuit frekuensi | 25...400 Hz |
| Standar | CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 60947-4-1, IEC 60335-1:Clause 30.2, IEC 60335-2-40:Annex JJ, UL 60335-2-40:Annex JJ, CSA C22.2 No 60947-4-1 |
| Tegangan switching minimum | 17 V for signalling circuit |
| Terukur kapasitas pemutusan | 550 A at 440 V for power circuit conforming to IEC 60947 |
| Tinggi | 85 mm |
| Tingkat polusi | 3 |
| Tingkat proteksi IP | IP20 front face conforming to IEC 60529 |
| Tipe kontak bantu | type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1, type mirror contact 1 NC conforming to IEC 60947-4-1 |
| Tipe produk atau komponen | Contactor |
| Torsi pengencangan | Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm, Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2, Power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm, Power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver Philips No 2, Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2, Power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 |
| Utilisation kategori | AC-4, AC-1, AC-3, AC-3e |
| Waktu operasi | 4...19 ms opening, 12...22 ms closing |
| [Icw] Terukur waktu singkat withstand arus | 60 A 40 °C - 10 min for power circuit, 430 A 40 °C - 1 s for power circuit, 150 A 40 °C - 1 min for power circuit, 310 A 40 °C - 10 s for power circuit, 100 A - 1 s for signalling circuit, 120 A - 500 ms for signalling circuit, 140 A - 100 ms for signalling circuit |
| [Ie] Arus operasional terukur | 50 A (at <60 °C) at <= 440 V AC AC-1 for power circuit, 38 A (at <60 °C) at <= 440 V AC AC-3 for power circuit |
| [Ith] Arus termal udara bebas konvensional | 10 A (at 60 °C) for signalling circuit, 50 A (at 60 °C) for power circuit |
| [Uc] Tegangan sirkuit kontrol | 110 V AC 50/60 Hz |
| [Ue] Tegangan operasional terukur | Power circuit: <= 690 V AC 25...400 Hz, Power circuit: <= 300 V DC |
| [Ui] Tegangan isolasi terukur | Power circuit: 600 V CSA certified, Power circuit: 600 V UL certified, Signalling circuit: 690 V conforming to IEC 60947-1, Signalling circuit: 600 V CSA certified, Signalling circuit: 600 V UL certified, Power circuit: 690 V conforming to IEC 60947-4-1 |
| [Uimp] Tegangan tahan impuls terukur | 6 kV conforming to IEC 60947 |
