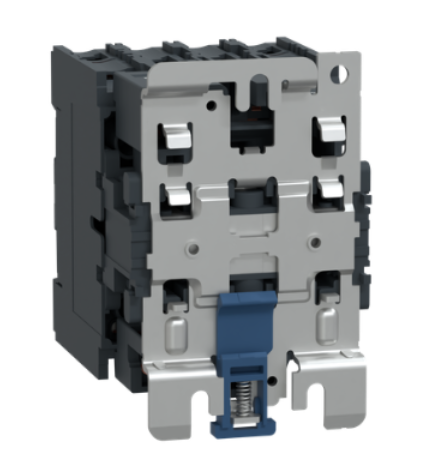

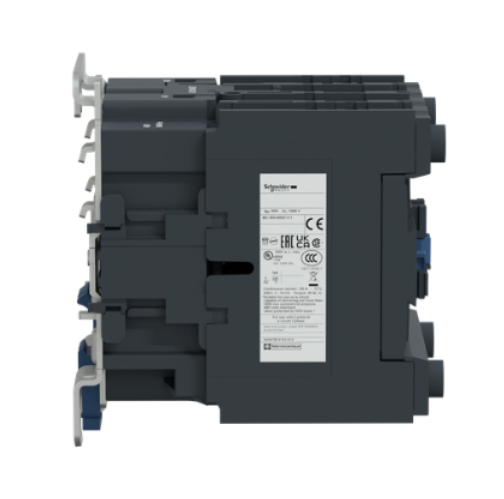

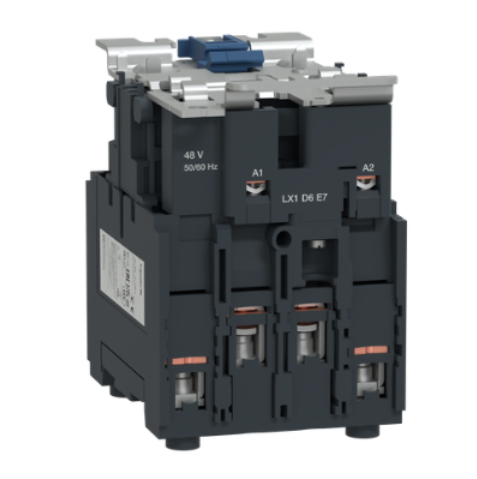

TeSys D contactor - 4P(2 NO + 2 NC) - AC-1 <= 440 V 60 A 220 V AC 50/60 Hz coil
Contactors to control motors up to 150 A (75 kW / 400 V)
TeSys Deca contactor, 4 poles (2NO+2NC), for non-inductive load applications up to 60A/690V AC-1. It provides a 220V 50/60Hz AC coil, power connection by screw terminals, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (85mm width), DIN-rail mounting or screw fixing. Without build-in auxiliary contacts, side and front mounting auxiliary contact blocks available (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Detail Produk
| Kode Produk | LC1D40008M7 |
| Brand | Schneider Electric |
| Aplikasi kontaktor | Resistive load |
| Berat produk | 1.44 kg |
| Climatic withstand | conforming to IACS E10 exposure to damp heat |
| Deskripsi kutub | 4P |
| Diizinkan ambient air temperature around the perangkat | -40…60 °C, 60…70 °C with derating |
| Dudukan pemasangan | Plate, Rail |
| Durabilitas listrik | 1.4 Mcycles 60 A AC-1 at Ue <= 440 V |
| Durabilitas mekanis | 6 Mcycles |
| Fire resistansi | 850 °C conforming to IEC 60695-2-1 |
| Flame retardance | V1 conforming to UL 94 |
| Heat dissipation | 4…5 W at 50/60 Hz |
| Hold-in power konsumsi in VA | 13 VA 60 Hz cos phi 0.3 (at 20 °C), 15 VA 50 Hz cos phi 0.3 (at 20 °C) |
| Inrush power in VA | 140 VA 60 Hz cos phi 0.75 (at 20 °C), 160 VA 50 Hz cos phi 0.75 (at 20 °C) |
| Irms terukur making capacity | 800 A at 440 V for power circuit conforming to IEC 60947 |
| Kategori tegangan lebih | III |
| Kedalaman | 125 mm |
| Kode kompatibilitas | LC1D |
| Koneksi - terminal | Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end, Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end, Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end, Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end, Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end, Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end, Power circuit: screw clamp terminals 1 1…35 mm² - cable stiffness: flexible without cable end, Power circuit: screw clamp terminals 2 1…25 mm² - cable stiffness: flexible without cable end, Power circuit: screw clamp terminals 1 1…35 mm² - cable stiffness: flexible with cable end, Power circuit: screw clamp terminals 2 1…25 mm² - cable stiffness: flexible with cable end, Power circuit: screw clamp terminals 1 1…35 mm² - cable stiffness: solid without cable end, Power circuit: screw clamp terminals 2 1…25 mm² - cable stiffness: solid without cable end |
| Kontrol sirkuit tegangan batas | 0.3...0.6 Uc (-40…70 °C):drop-out AC 50/60 Hz, 0.8...1.1 Uc (-40…60 °C):operational AC 50 Hz, 0.85...1.1 Uc (-40…60 °C):operational AC 60 Hz, 1...1.1 Uc (60…70 °C):operational AC 50/60 Hz |
| Kontrol sirkuit tipe | AC at 50/60 Hz |
| Kumparan technology | Without built-in suppressor module |
| Laju operasi maksimum | 3600 cyc/h at 60 °C |
| Lebar | 85 mm |
| Mechanical robustness | Shocks contactor open (8 Gn for 11 ms), Shocks contactor closed (10 Gn for 11 ms), Vibrations contactor opened (2 Gn, 5...300 Hz), Vibrations contactor closed (4 Gn, 5...300 Hz) |
| Nama singkat perangkat | LC1D |
| Operating altitude | 0...3000 m |
| Pole contact composition | 2 NO + 2 NC |
| Power dissipation per pole | 5.4 W AC-1 |
| Protective cover | With |
| Protective treatment | TH conforming to IEC 60068-2-30 |
| Rangkaian | TeSys |
| Rangkaian produk | TeSys Deca |
| Rata-rata impedance | 1.5 mOhm - Ith 60 A 50 Hz for power circuit |
| Rating sekring terkait | 80 A gG at <= 690 V coordination type 1 for power circuit, 80 A gG at <= 690 V coordination type 2 for power circuit |
| Safety keandalan level | B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1, B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 |
| Sertifikasi produk | RINA, GL, UL, GOST, BV, LROS (Lloyds register of shipping), DNV, CCC, CSA |
| Standar | CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 60947-4-1 |
| Terukur kapasitas pemutusan | 800 A at 440 V for power circuit conforming to IEC 60947 |
| Tinggi | 127 mm |
| Tingkat polusi | 3 |
| Tingkat proteksi IP | IP20 front face conforming to IEC 60529 |
| Tipe produk atau komponen | Contactor |
| Torsi pengencangan | Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm, Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2, Power circuit: 8 N.m - on screw clamp terminals - cable 25…35 mm² hexagonal screw head 4 mm, Power circuit: 5 N.m - on screw clamp terminals - cable 1…25 mm² hexagonal screw head 4 mm, Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 |
| Utilisation kategori | AC-1 |
| Waktu operasi | 4...19 ms opening, 12...26 ms closing |
| [Icw] Terukur waktu singkat withstand arus | 320 A 40 °C - 10 s for power circuit, 720 A 40 °C - 1 s for power circuit, 72 A 40 °C - 10 min for power circuit, 165 A 40 °C - 1 min for power circuit |
| [Ie] Arus operasional terukur | 60 A (at <60 °C) at <= 440 V AC AC-1 for power circuit |
| [Ith] Arus termal udara bebas konvensional | 60 A (at 60 °C) for power circuit |
| [Uc] Tegangan sirkuit kontrol | 220 V AC 50/60 Hz |
| [Ue] Tegangan operasional terukur | Power circuit: <= 690 V AC 25...400 Hz, Power circuit: <= 300 V DC |
| [Ui] Tegangan isolasi terukur | Power circuit: 600 V CSA certified, Power circuit: 600 V UL certified, Power circuit: 690 V conforming to IEC 60947-4-1 |
| [Uimp] Tegangan tahan impuls terukur | 6 kV conforming to IEC 60947 |
