TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 125 A - 48 V AC 50/60 Hz coil

Contactors to control motors up to 150 A (75 kW / 400 V)

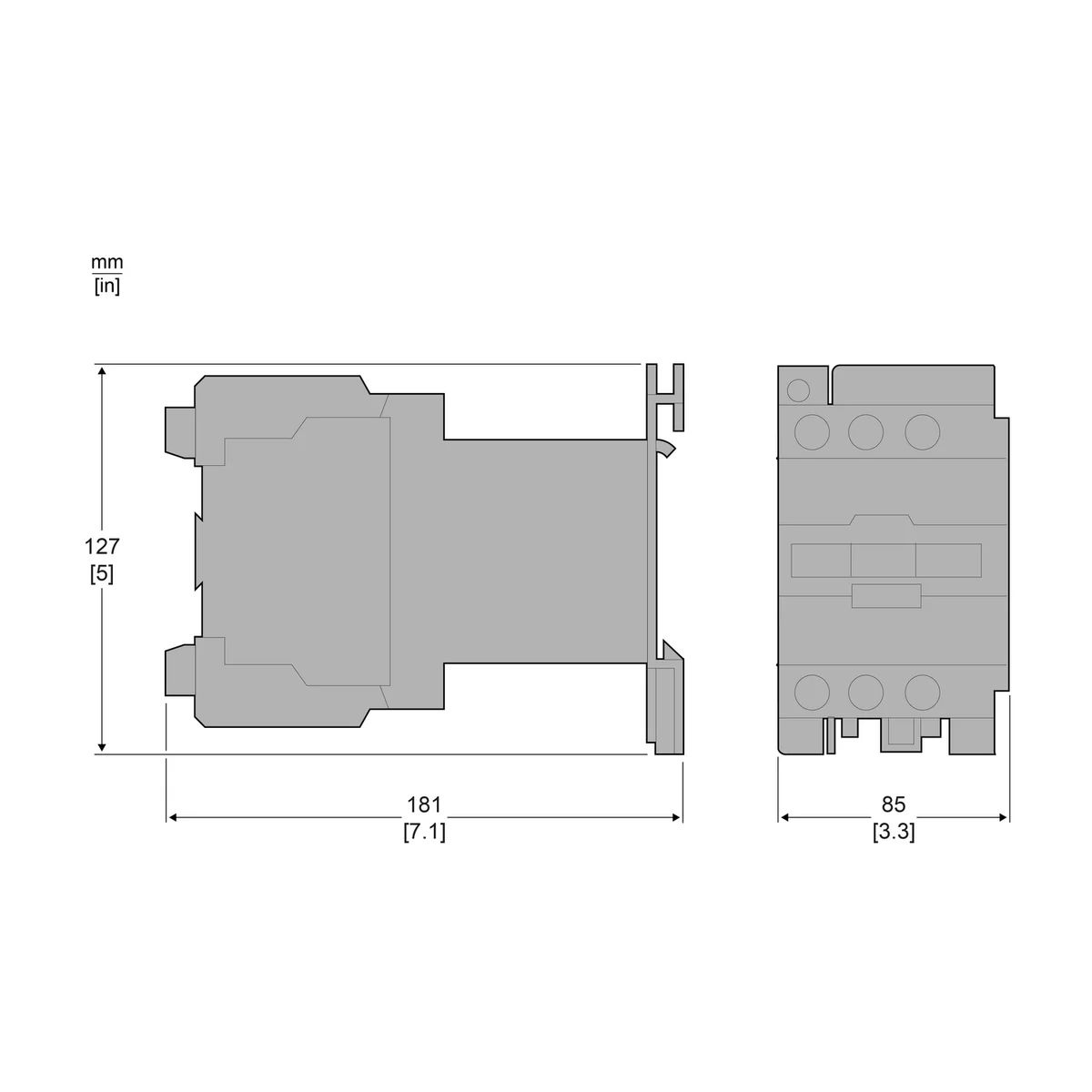

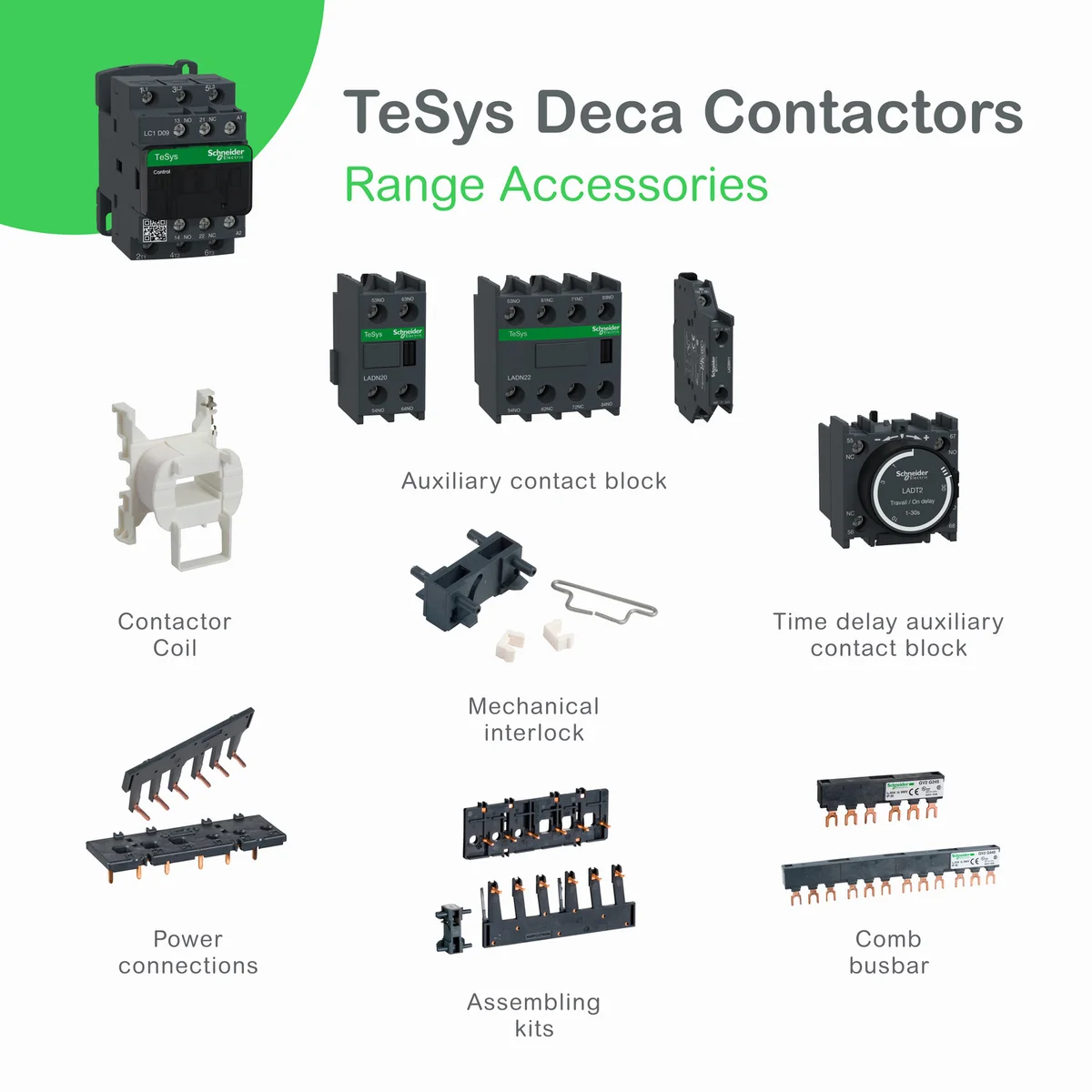

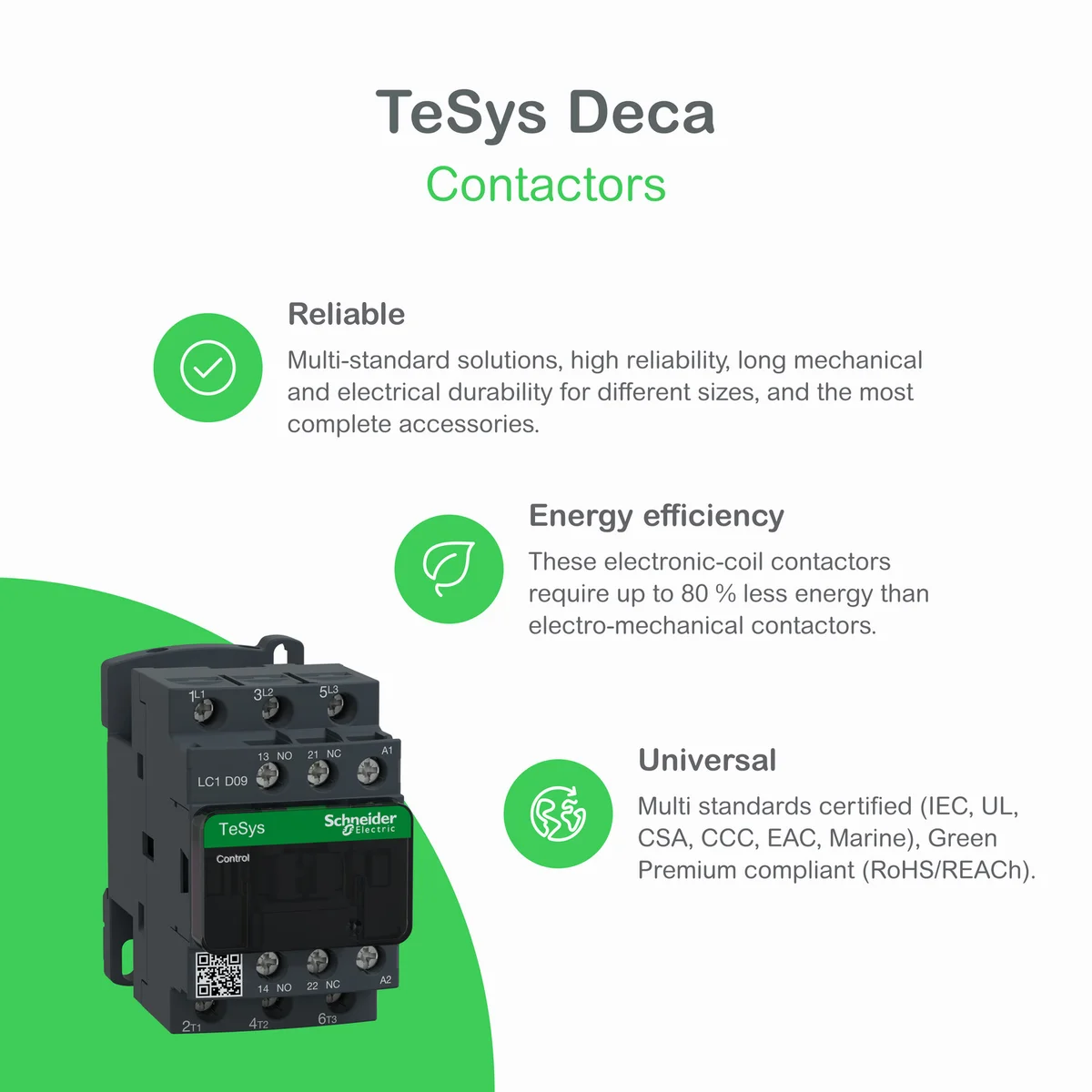

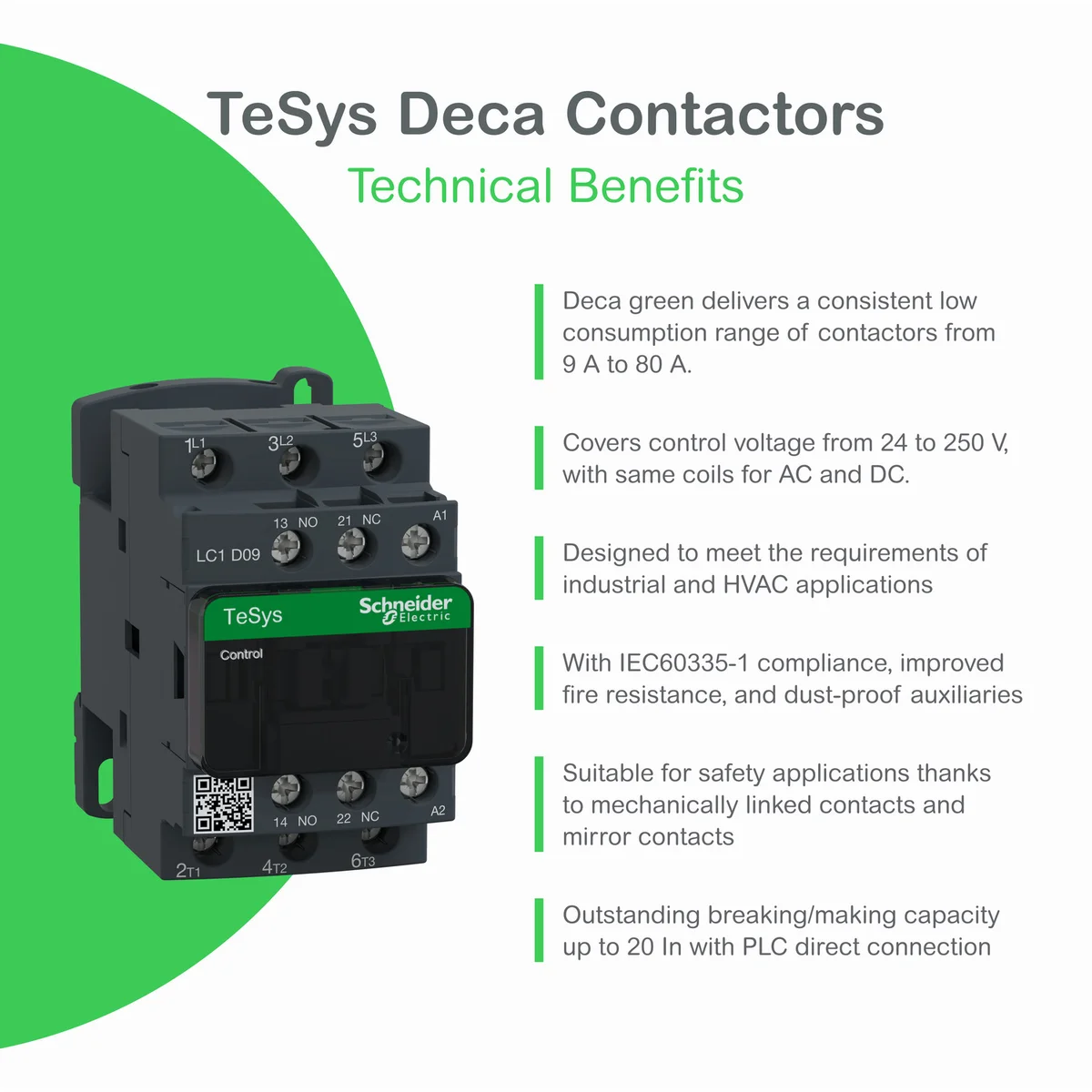

TeSys Deca contactor, 4P(4NO) for category AC-1 applications up to 125A @440V. It provides with 48V 50/60 Hz coil, with no auxiliary contacts, power and control connections by screw clamp terminals. It procures with 4 Mcycles mechanical durability and 0.8 Mcycles electrical durability. It provides IP20 protection on front face conforming to IEC 60529. It can cover -40°C to 60°C operation temperature and without derating under 3000m altitude. Designed for demanding applications with maximum operating rates up to 3600 cycles per hour under maximum 60°C. The dimension is 127mm x 96mm x 125mm (H x W x D), mounting on rail or plate. Multi standards certified(UL,LROS,DNV,GOST,RINA,CSA,CCC,BV,GL) and Green Premium compliant (RoHs/Reach).

Detail Produk

Kode ProdukLC1D80004E7
BrandSchneider Electric
Aplikasi kontaktorResistive load
Berat produk1.76 kg
Climatic withstandconforming to IACS E10 exposure to damp heat
Deskripsi kutub4P
Diizinkan ambient air temperature around the perangkat-40…60 °C, 60…70 °C with derating
Dudukan pemasanganPlate, Rail
Durabilitas listrik0.8 Mcycles 125 A AC-1 at Ue <= 440 V
Durabilitas mekanis4 Mcycles
Fire resistansi850 °C conforming to IEC 60695-2-1
Flame retardanceV1 conforming to UL 94
Heat dissipation6…10 W at 50/60 Hz
Hold-in power konsumsi in VA26 VA 60 Hz cos phi 0.3 (at 20 °C), 26 VA 50 Hz cos phi 0.3 (at 20 °C)
Inrush power in VA245 VA 60 Hz cos phi 0.75 (at 20 °C), 245 VA 50 Hz cos phi 0.75 (at 20 °C)
Irms terukur making capacity1100 A at 440 V for power circuit conforming to IEC 60947
Kategori tegangan lebihIII
Kedalaman125 mm
Kode kompatibilitasLC1D
Koneksi - terminalControl circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end, Control circuit: screw clamp terminals 1 1…2.5 mm² - cable stiffness: flexible with cable end, Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end, Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end, Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end, Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end, Power circuit: connector 1 4…50 mm² - cable stiffness: flexible without cable end, Power circuit: connector 2 4…25 mm² - cable stiffness: flexible without cable end, Power circuit: connector 1 4…50 mm² - cable stiffness: flexible with cable end, Power circuit: connector 2 4…16 mm² - cable stiffness: flexible with cable end, Power circuit: connector 1 4…50 mm² - cable stiffness: solid without cable end, Power circuit: connector 2 4…25 mm² - cable stiffness: solid without cable end
Kontrol sirkuit tegangan batas0.85...1.1 Uc (-40…55 °C):operational AC 60 Hz, 0.3...0.6 Uc (-40…70 °C):drop-out AC 50/60 Hz, 0.8...1.1 Uc (-40…55 °C):operational AC 50 Hz, 1...1.1 Uc (55…70 °C):operational AC 50/60 Hz
Kontrol sirkuit tipeAC at 50/60 Hz
Kumparan technologyWithout built-in suppressor module
Laju operasi maksimum3600 cyc/h at 60 °C
Lebar96 mm
Mechanical robustnessVibrations contactor open (2 Gn, 5...300 Hz), Shocks contactor open (8 Gn for 11 ms), Vibrations contactor closed (3 Gn, 5...300 Hz), Shocks contactor closed (10 Gn for 11 ms)
Motor power kw22 kW at 220...230 V AC 50/60 Hz, 37 kW at 380...400 V AC 50/60 Hz, 45 kW at 660...690 V AC 50/60 Hz, 55 kW at 500 V AC 50/60 Hz, 45 kW at 415...440 V AC 50/60 Hz
Nama singkat perangkatLC1D
Operating altitude0...3000 m
Pole contact composition4 NO
Power dissipation per pole12.5 W AC-1
Protective coverWith
Protective treatmentTH conforming to IEC 60068-2-30
RangkaianTeSys
Rangkaian produkTeSys Deca
Rata-rata impedance0.8 mOhm - Ith 125 A 50 Hz for power circuit
Rating sekring terkait200 A gG at <= 690 V coordination type 1 for power circuit, 160 A gG at <= 690 V coordination type 2 for power circuit
Safety keandalan levelB10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1, B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Sertifikasi produkCCC, UL, CB Scheme, CSA, CE, UKCA, Marine, EAC
StandarEN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, CSA C22.2 No 14, UL 60947-4-1, IEC 60335-2-40:Annex JJ, UL 60335-2-40:Annex JJ, IEC 60335-1:Clause 30.2
Terukur kapasitas pemutusan1100 A at 440 V for power circuit conforming to IEC 60947
Tinggi127 mm
Tingkat polusi3
Tingkat proteksi IPIP20 front face conforming to IEC 60529
Tipe produk atau komponenContactor
Torsi pengencanganControl circuit: 1.2 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm, Control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver Philips No 2, Power circuit: 12 N.m - on connector - with screwdriver flat Ø 6 to Ø 8 mm, Power circuit: 12 N.m - on connector hexagonal screw head 4 mm
Utilisation kategoriAC-1
Waktu operasi20...35 ms closing, 6...20 ms opening
[Icw] Terukur waktu singkat withstand arus640 A 40 °C - 10 s for power circuit, 990 A 40 °C - 1 s for power circuit, 135 A 40 °C - 10 min for power circuit, 320 A 40 °C - 1 min for power circuit
[Ie] Arus operasional terukur125 A (at <60 °C) at <= 1000 V AC AC-1 for power circuit, 80 A (at <60 °C) at <= 440 V AC AC-3 for power circuit, 80 A (at <60 °C) at <= 440 V AC AC-3e for power circuit, 55 A (at <60 °C) at <= 400 V AC AC-4 for power circuit
[Ith] Arus termal udara bebas konvensional125 A (at 60 °C) for power circuit
[Uc] Tegangan sirkuit kontrol48 V AC 50/60 Hz
[Ue] Tegangan operasional terukurPower circuit: <= 300 V DC 25...400 Hz, Power circuit: <= 690 V AC
[Ui] Tegangan isolasi terukurPower circuit: 600 V CSA certified, Power circuit: 600 V UL certified, Power circuit: 1000 V conforming to IEC 60947-4-1
[Uimp] Tegangan tahan impuls terukur8 kV conforming to IEC 60947
Stok
66 tersedia
Stok Tersedia (66)
Rp 8.256.150
Rp 8.256.150
