TeSys LRD thermal overload relays - 17...25 A - class 10A
Formerly named TeSys LRD. Thermal relays, coordinated with TeSys Deca contactors and circuit-breakers, to protect from overloads motors up to 150 A (75 kW / 400 V)

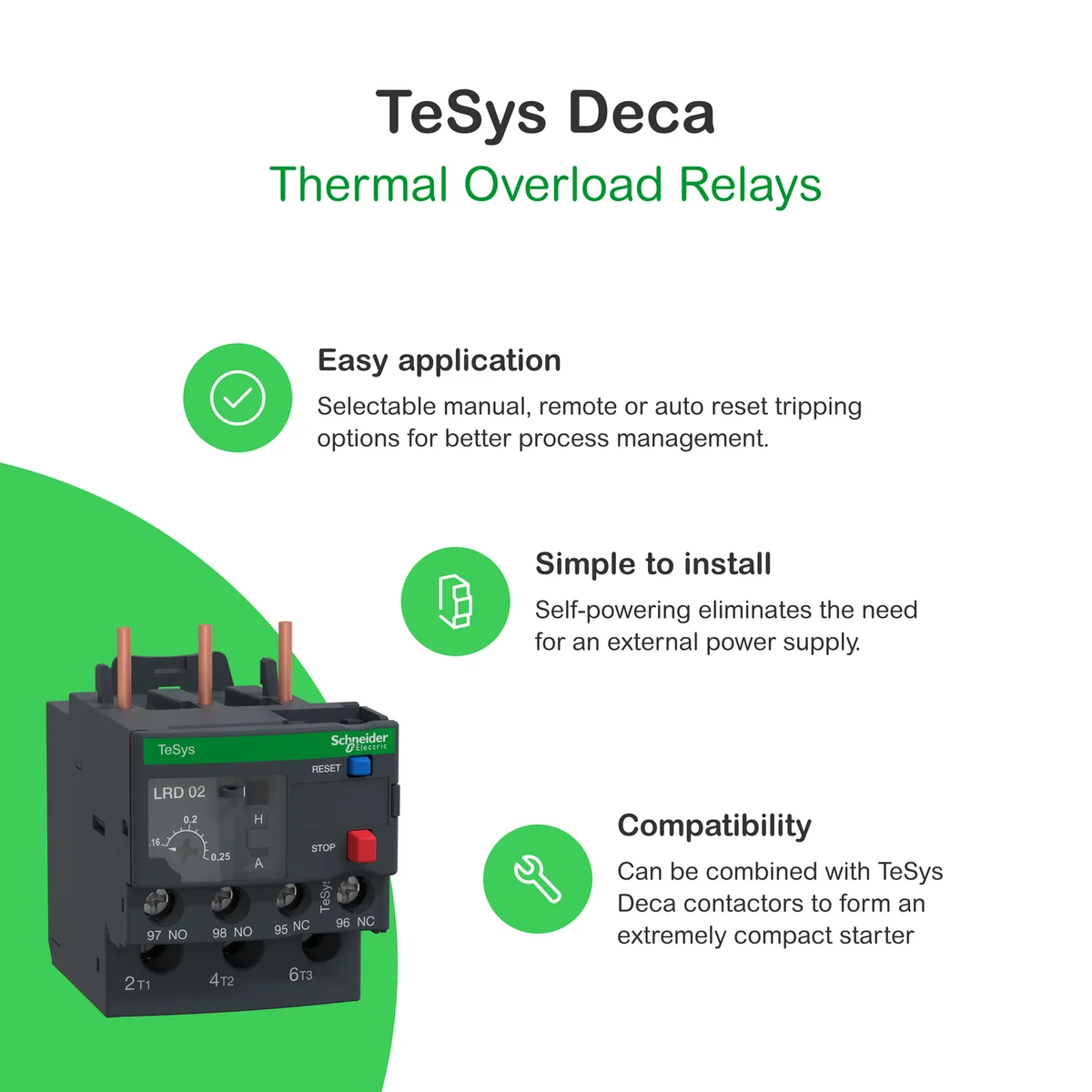

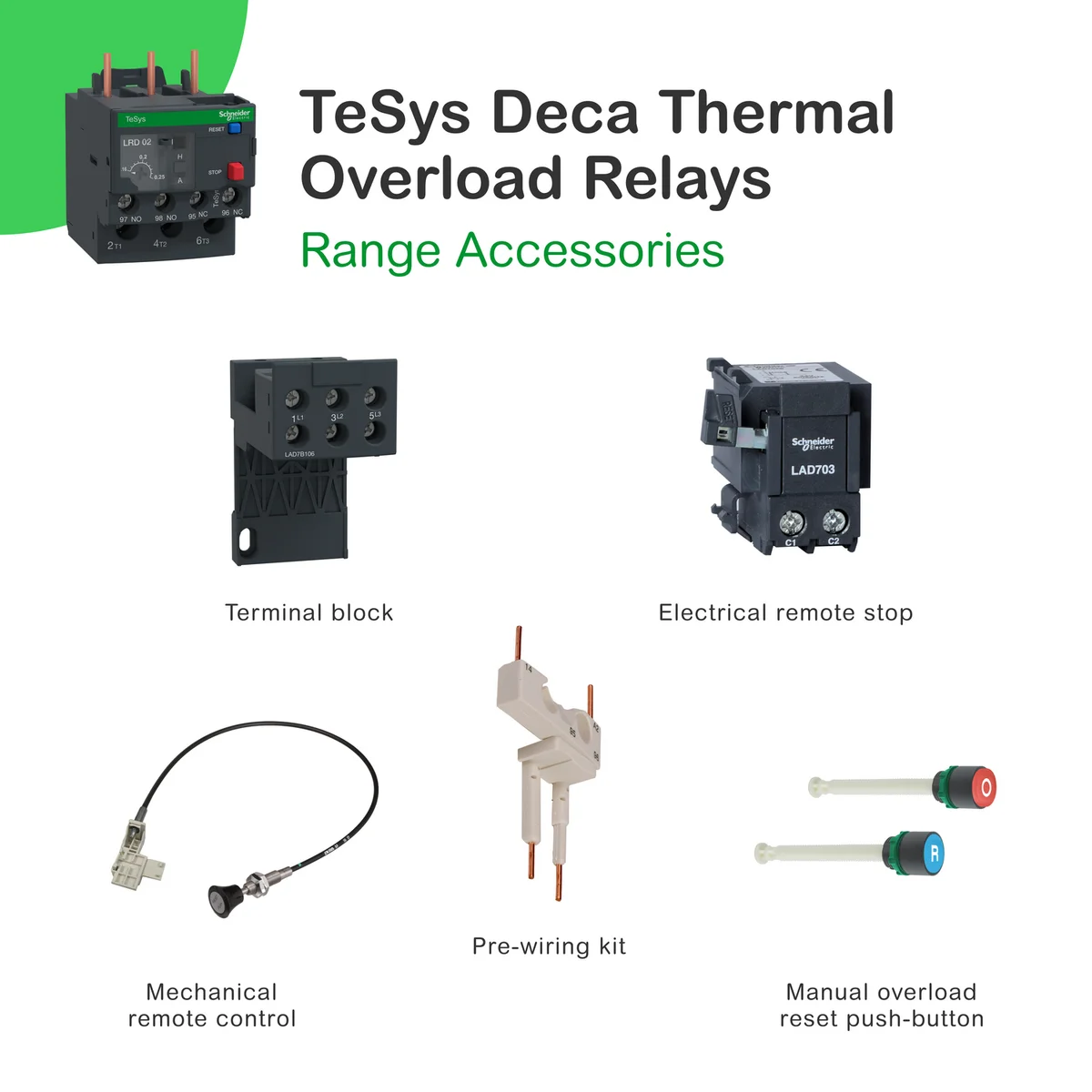

TeSys LRD thermal overload relay, 25A/690V, thermal setting range 17-25A, tripping class 10A, for protection of 3-phase motors 11kW@400V. Differential device with phase failure (loss). It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by EverLink BTR screw terminals , it connects directly to the bottom terminals of 3-pole contactors LC1D40A-D80A. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD96560 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHs/Reach).
Detail Produk
| Kode Produk | LRD325 |
| Brand | Schneider Electric |
| Ambang trip | 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 |
| Berat produk | 0.375 kg |
| Climatic withstand | conforming to IACS E10 |
| Diizinkan arus | 0.95 A at 380 V AC-15 for signalling circuit, 0.06 A at 440 V DC-13 for signalling circuit |
| Dudukan pemasangan | Plate, with specific accessories, Rail, with specific accessories, Under contactor |
| Flame retardance | V1 conforming to UL 94 |
| Frekuensi jaringan | 0...400 Hz |

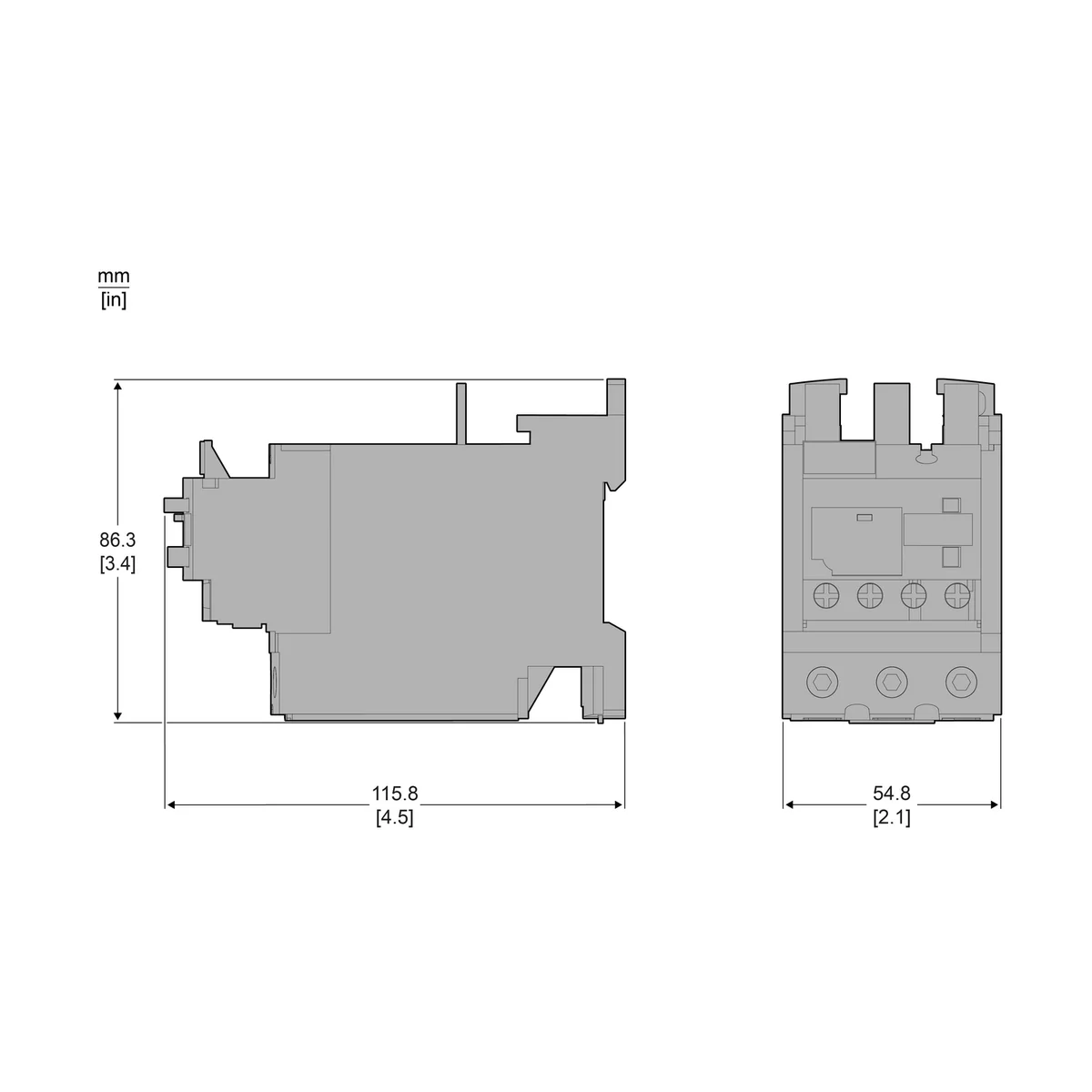

| Kedalaman | 123 mm |
| Kekuatan dielektrik | 1.89 kV at 50 Hz conforming to IEC 60947-1 |
| Kelas beban lebih termal | Class 10A conforming to IEC 60947-4-1 |
| Komposisi kontak bantu | 1 NO + 1 NC |
| Koneksi - terminal | Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible without cable end, Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible with cable end, Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² solid without cable end, Power circuit: EverLink BTR screw connectors 1 cable(s) 1…35 mm² flexible without cable end, Power circuit: EverLink BTR screw connectors 1 cable(s) 1…35 mm² flexible with cable end, Power circuit: EverLink BTR screw connectors 1 cable(s) 1…35 mm² solid without cable end |
| Lebar | 55 mm |
| Mechanical robustness | Shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7, Vibrations: 4 gn conforming to IEC 60068-2-6 |
| Nama produk | TeSys LRD, TeSys Deca |
| Nama singkat perangkat | LRD |
| Phase failure sensitivity | Tripping current 130 % of Ir on two phase, the last one at 0 |
| Produk kompatibilitas | LC1D40A, LC1D65A, LC1D50A |
| Rangkaian | TeSys, TeSys Deca |
| Rating sekring terkait | 4 A gG for signalling circuit, 4 A BS for signalling circuit |
| Relay aplikasi | Motor protection |
| Rentang pengaturan proteksi termal | 17…25 A |
| Sertifikasi produk | IEC, UL, CSA, CCC, EAC, DNV-GL, RMRS, EU-RO MR, LROS (Lloyds register of shipping), ATEX INERIS, UKCA |
| Standar | EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, GB/T 14048.4, GB/T 14048.5, EN 50495 |
| Suhu udara lingkungan untuk operasi | -20…60 °C without derating conforming to IEC 60947-4-1 |
| Suhu udara lingkungan untuk penyimpanan | -60…70 °C |
| Temperature compensation | -20…60 °C |
| Tinggi | 70 mm |
| Tingkat proteksi IP | IP20 conforming to IEC 60529 |
| Tipe jaringan | DC, AC |
| Tipe kontrol | Red push-button: stop, Blue push-button: reset |
| Tipe produk atau komponen | Differential thermal overload relay |
| Torsi pengencangan | Control circuit: 1.7 N.m - on screw clamp terminals, Power circuit: 5 N.m - on EverLink BTR screw connectors |
| [Ith] Arus termal udara bebas konvensional | 5 A for signalling circuit |
| [Ue] Tegangan operasional terukur | 690 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1 |
| [Ui] Tegangan isolasi terukur | Power circuit: 600 V conforming to CSA, Power circuit: 600 V conforming to UL, Power circuit: 690 V conforming to IEC 60947-4-1 |
| [Uimp] Tegangan tahan impuls terukur | 6 kV |
